Texas Instruments LP5816 Product Info

Parameters

Number of channels	4
LED current per channel (mA)	50
LED configuration	Parallel
Program memory	No
Topology	Linear
Programmable ramp control	No
Vin (min) (V)	2.5
Vin (max) (V)	5.5
Iout (max) (A)	0.2
Features	Analog/PWM mixed dimming, Constant current, I2C control, Thermal shutdown
Iq (typ) (mA)	0.15
Shutdown current (ISD) (typ) (µA)	0.1
Operating temperature range (°C)	-40 to 125
Rating	Catalog

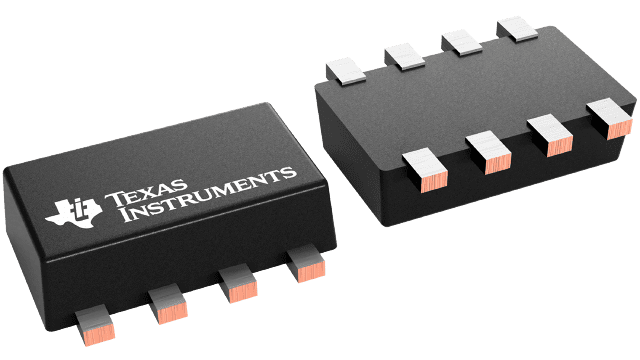

Package

DSBGA (YCH)-8-0.98 mm² 1.4 x 0.7

Features

Operating voltage range
- VCC range: 2.5V to 5.5V
- Logic pins compatible with 1.8V, 3.3V, and 5V
- Output voltage up to 5.5V
4 constant current sinks with high precision
- 0.1mA to 51mA per channel
- Device-to-device error: ±8% (max.)
- Channel-to-channel error: ±3% (max.)
- Ultra-low headroom voltage: 135mV (max.) at 25.5mA; 275mV (max.) at 51mA
Ultra-low power consumption
- Shutdown: ISD = 0.1µA (typ.)
- Standby: ISTB = 22µA (typ.)
- Active:
  - INOR = 0.15mA (typ.) when disable output channel
  - INOR = 0.23mA (typ.) when LED current = 25.5mA
Analog dimming (current gain control)
- Global 1-bit Maximum Current (MC): 25.5mA or 51mA
- Individual 8-bits Dot Current (DC) setting
PWM dimming up to audible-noise-free 23kHz
- Individual 8-bits PWM dimming resolution
- Linear or exponential dimming curves
400kHz (max.) I2C interface
ESD: 4kV HBM, 1.5kV CDM
Package
- 1.6mm*2.1mm SOT583-8 with 0.5mm pitch
- 1.36mm*0.8mm DSBGA-8 with 0.35mm pitch
–40°C to 125°C operating temperature range

Operating voltage range
- VCC range: 2.5V to 5.5V
- Logic pins compatible with 1.8V, 3.3V, and 5V
- Output voltage up to 5.5V
4 constant current sinks with high precision
- 0.1mA to 51mA per channel
- Device-to-device error: ±8% (max.)
- Channel-to-channel error: ±3% (max.)
- Ultra-low headroom voltage: 135mV (max.) at 25.5mA; 275mV (max.) at 51mA
Ultra-low power consumption
- Shutdown: ISD = 0.1µA (typ.)
- Standby: ISTB = 22µA (typ.)
- Active:
  - INOR = 0.15mA (typ.) when disable output channel
  - INOR = 0.23mA (typ.) when LED current = 25.5mA
Analog dimming (current gain control)
- Global 1-bit Maximum Current (MC): 25.5mA or 51mA
- Individual 8-bits Dot Current (DC) setting
PWM dimming up to audible-noise-free 23kHz
- Individual 8-bits PWM dimming resolution
- Linear or exponential dimming curves
400kHz (max.) I2C interface
ESD: 4kV HBM, 1.5kV CDM
Package
- 1.6mm*2.1mm SOT583-8 with 0.5mm pitch
- 1.36mm*0.8mm DSBGA-8 with 0.35mm pitch
–40°C to 125°C operating temperature range

Description

The LP5816 is a 4-channel RGBW LED driver. The device has ultra-low operation current with 0.1µA (typical) in shutdown mode, 0.1mA (typical) when enable device and 0.2mA (typical) when illuminate LEDs.

Both analog dimming and PWM dimming methods are adopted to achieve powerful dimming performance. The output current of each LED can be adjusted with 256 steps from 0.1mA to 25.5mA or 0.2mA to 51mA. The 8-bits PWM generator enables smooth and audible-noise-free dimming control for LED brightness.

The LP5816 is a 4-channel RGBW LED driver. The device has ultra-low operation current with 0.1µA (typical) in shutdown mode, 0.1mA (typical) when enable device and 0.2mA (typical) when illuminate LEDs.

Both analog dimming and PWM dimming methods are adopted to achieve powerful dimming performance. The output current of each LED can be adjusted with 256 steps from 0.1mA to 25.5mA or 0.2mA to 51mA. The 8-bits PWM generator enables smooth and audible-noise-free dimming control for LED brightness.
