ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
26 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Rail-to-rail |
In to V- |
GBW (typ) (MHz) |
0.1 |
Slew rate (typ) (V/µs) |
0.05 |
Vos (offset voltage at 25°C) (max) (mV) |
10 |
Iq per channel (typ) (mA) |
0.02125 |
Vn at 1 kHz (typ) (nV√Hz) |
80 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
0 |
Input bias current (max) (pA) |
20000 |
CMRR (typ) (dB) |
90 |
Iout (typ) (A) |
0.004 |
Architecture |
Bipolar |

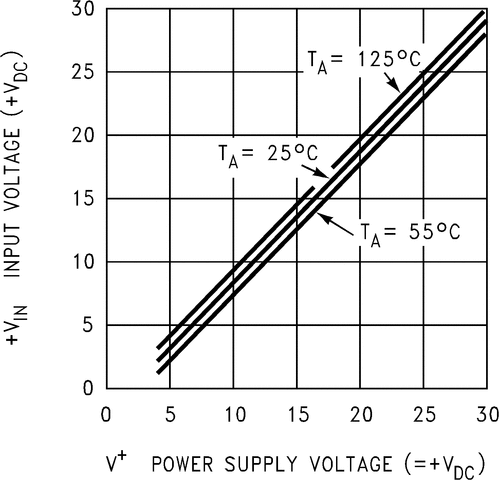

Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.7 |
Output swing headroom (to positive supply) (typ) (V) |
-1.4 |

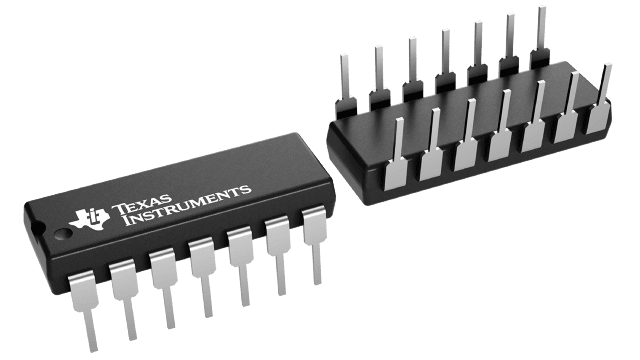

PDIP (N)-14-181.42 mm² 19.3 x 9.4
All trademarks are the property of their respective owners.
The LP324-N series consists of four independent, high gain internally compensated micropower operational amplifiers. These amplifiers are specially suited for operation in battery systems while maintaining good input specifications, and extremely low supply current drain. In addition, the LP324-N has an input common mode range, and output source range which includes ground, making it ideal in single supply applications.
These amplifiers are ideal in applications which include portable instrumentation, battery backup equipment, and other circuits which require good DC performance and low supply current.
