ACTIVE
Rating |
Catalog |
Topology |
Buck, Synchronous Buck |
Iout (max) (A) |
3 |
Vin (max) (V) |
14.5 |
Vin (min) (V) |
4.5 |
Vout (max) (V) |
5.5 |
Vout (min) (V) |
0.8 |
Features |
EMI Tested, Enable, Frequency synchronization, Power good, Remote Sense, Tracking |
Operating temperature range (°C) |
-40 to 85 |
Type |
Module |
Duty cycle (max) (%) |
100 |
Control mode |
current mode |
Switching frequency (min) (kHz) |
330 |
Switching frequency (max) (kHz) |
780 |
B1QFN (RUQ)-47-135 mm² 15 x 9

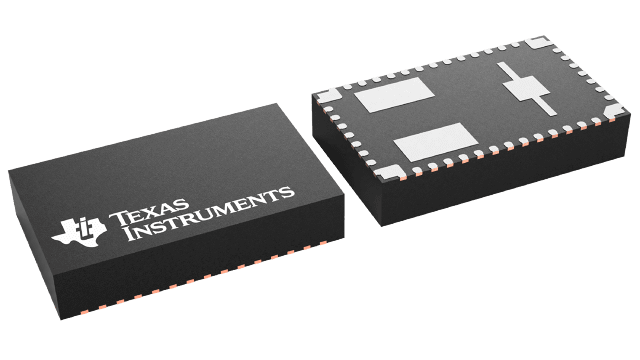

The LMZ31503 power module is an easy-to-use integrated power solution that combines a 3-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetics design process.
The 9×15×2.8 mm QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with up to 95% efficiency and excellent power dissipation with a thermal impedance of 13°C/W junction to ambient. The device delivers the full 3-A rated output current at 85°C ambient temperature without airflow.
The LMZ31503 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
