ACTIVE
Rating |
Catalog |
Topology |
Buck, Inverting Buck-Boost, Synchronous Buck |
Iout (max) (A) |
5 |
Vin (max) (V) |
36 |
Vin (min) (V) |
6 |
Vout (max) (V) |
6 |
Vout (min) (V) |
0.8 |
Features |
EMI Tested, Enable, Frequency synchronization, Tracking |
Operating temperature range (°C) |
-40 to 85 |
Type |
Module |
Duty cycle (max) (%) |
83 |
Control mode |
Peak current mode |
Switching frequency (min) (kHz) |
650 |
Switching frequency (max) (kHz) |
950 |

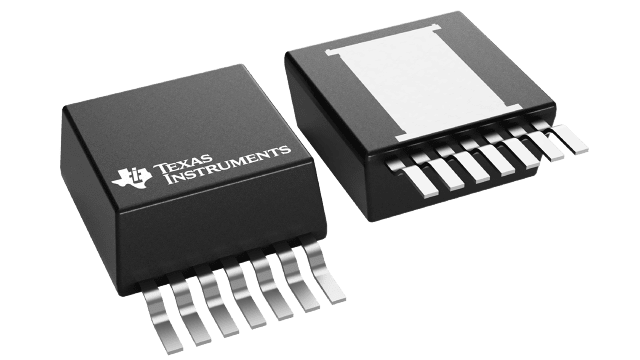

TO-PMOD (NDW)-7-139.9032 mm² 10.16 x 13.77

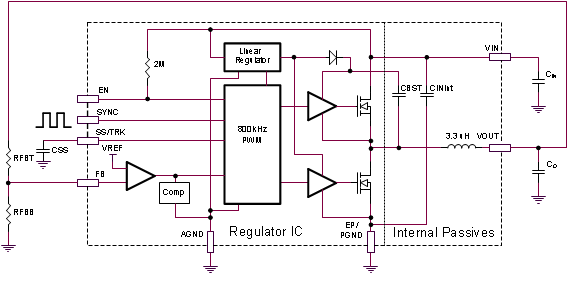

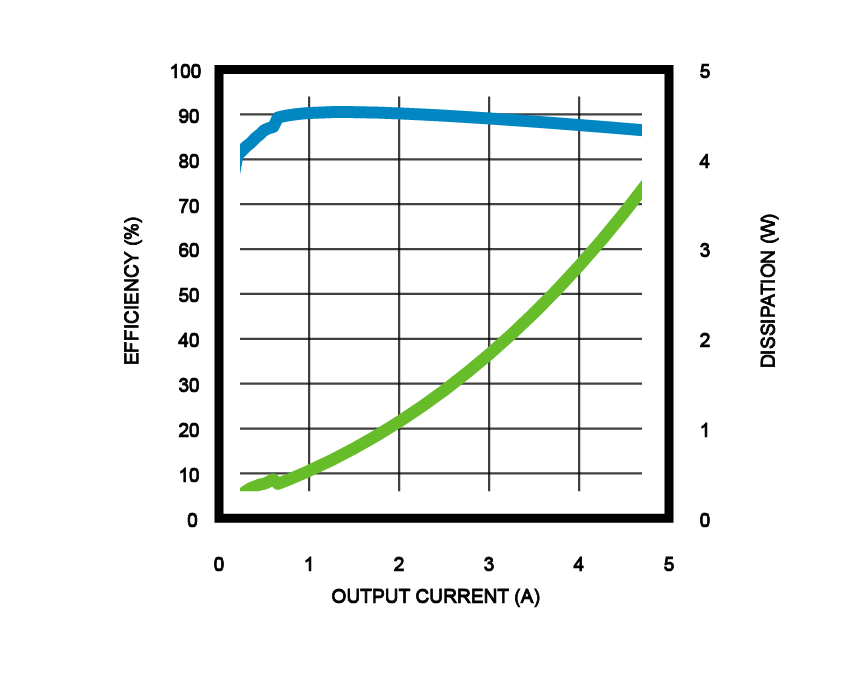

The LMZ23605 SIMPLE SWITCHER® power module is an easy-to-use step-down DC DC solution capable of driving up to 5-A load. The LMZ23605 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

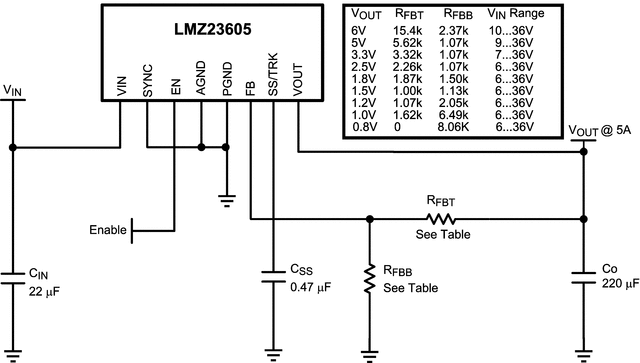

The LMZ23605 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ23605 only requires two external resistors and three external capacitors to complete the power solution. The LMZ23605 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range.
