ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
7.5 |
CON (typ) (pF) |
18 |
ON-state leakage current (max) (µA) |
0.2 |
Supply current (typ) (µA) |
0.1 |
Bandwidth (MHz) |
330 |
Operating temperature range (°C) |
-40 to 85 |
Input/output continuous current (max) (A) |
0.05 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

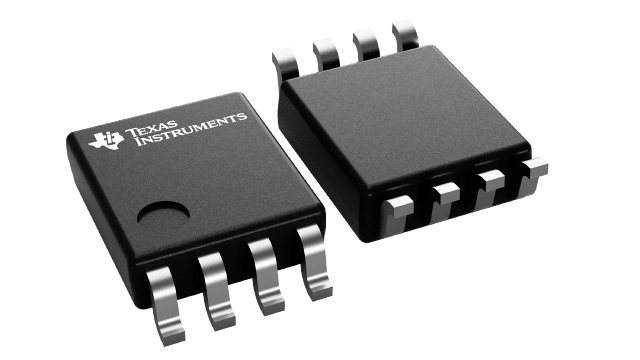

SSOP (DCT)-8-11.8 mm² 2.95 x 4
)
The TS5A2053 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
