0
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
17 |
Slew rate (typ) (V/µs) |
9.5 |
Vos (offset voltage at 25°C) (max) (mV) |
1.35 |
Iq per channel (typ) (mA) |
1.3 |
Vn at 1 kHz (typ) (nV√Hz) |
5.8 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.8 |
Input bias current (max) (pA) |
1 |
CMRR (typ) (dB) |
100 |
Iout (typ) (A) |
0.021 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
-1 |
Output swing headroom (to negative supply) (typ) (V) |
0.02 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9

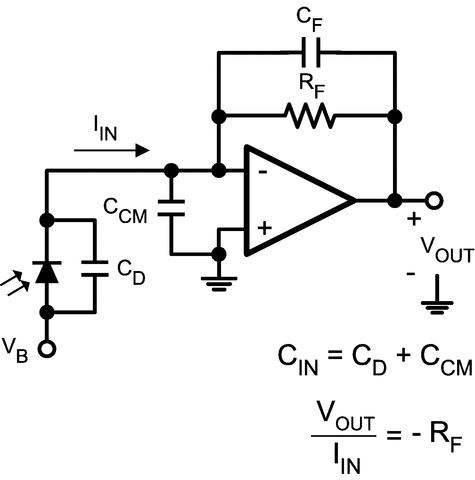

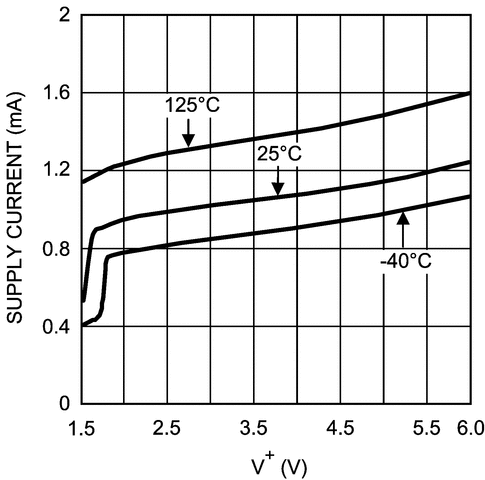

(Typical 5V Supply, Unless Otherwise Noted)
All trademarks are the property of their respective owners.
The LMV796/LMV796Q (Single) and the LMV797 (Dual) low noise, CMOS input operational amplifiers offer a low input voltage noise density of 5.8 nV/√Hz while consuming only 1.15 mA (LMV796/LMV796Q) of quiescent current. The LMV796/LMV796Q and LMV797 are unity gain stable op amps and have gain bandwidth of 17 MHz. The LMV796/LMV796Q/ LMV797 have a supply voltage range of 1.8V to 5.5V and can operate from a single supply. The LMV796/LMV796Q/LMV797 each feature a rail-to-rail output stage capable of driving a 600Ω load and sourcing as much as 60 mA of current.
The LMV796/LMV796Q family provides optimal performance in low voltage and low noise systems. A CMOS input stage, with typical input bias currents in the range of a few femtoAmperes, and an input common mode voltage range, which includes ground, make the LMV796/LMV796Q and the LMV797 ideal for low power sensor applications.
The LMV796/LMV796Q/LMV797 are manufactured using TI’s advanced VIP50 process. The LMV796/ LMV796Q are offered in 5–pin SOT-23 package. The LMV797 is offered in 8–pin VSSOP package.
