ACTIVE
Product type |
Analog output |
Common-mode voltage (max) (V) |
60 |
Common-mode voltage (min) (V) |
2.7 |
Input offset (±) (max) (µV) |
1000 |
Input offset drift (±) (typ) (µV/°C) |
1 |
Features |
Current Output |
Rating |
Automotive |
Voltage gain (V/V) |
adjustable |
CMRR (min) (dB) |
100 |
Bandwidth (kHz) |
220 |
Supply voltage (max) (V) |
60 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.125 |
Number of channels |
1 |
Comparators (#) |
0 |
Gain error (%) |
2 |
Gain error drift (±) (max) (ppm/°C) |
100 |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-8-19.2 mm² 3 x 6.4
The INA139-Q1 and INA169-Q1 (INA1x9-Q1) are high-side, unidirectional, current shunt monitors. Wide input common-mode voltage range, high-speed, low quiescent current, and TSSOP-8 packaging enable use in a variety of applications.

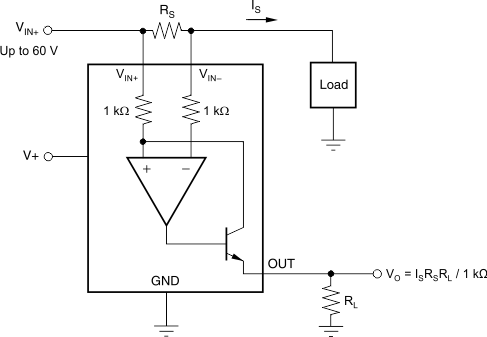

The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting.
Both the INA139-Q1 and INA169-Q1 are available in a TSSOP-8 package, and are specified for the –40°C to +125°C temperature range.
