ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.35 |
Offset drift (typ) (µV/°C) |
1 |

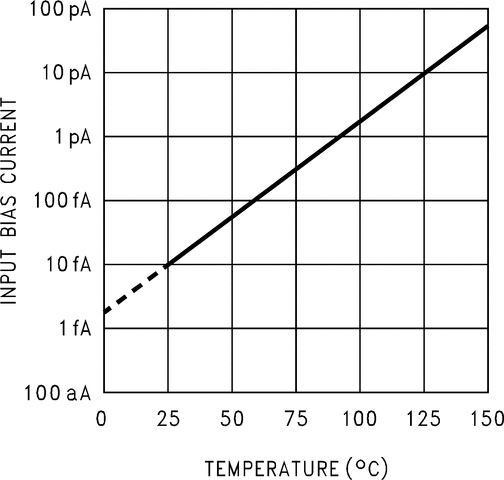

Input bias current (max) (pA) |
0.1 |
GBW (typ) (MHz) |
0.1 |
Slew rate (typ) (V/µs) |
0.035 |
Rail-to-rail |
In to V-, Out |
Iq per channel (typ) (mA) |
0.02 |
Vn at 1 kHz (typ) (nV√Hz) |
83 |
CMRR (typ) (dB) |
85 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.021 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.4 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.9 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-0.005 |
THD + N at 1 kHz (typ) (%) |
0.01 |
SOIC (D)-8-29.4 mm² 4.9 x 6
The LMC6061, LMC6062, and LMC6064 (LMC606x) are precision, low-offset-voltage, micropower operational amplifiers (op amps), capable of precision single-supply operation. Performance characteristics include ultra-low input bias current, high voltage gain, rail-to-rail output swing, and an input common-mode voltage range that includes ground. These features, plus the low power consumption of the op amps, make the LMC606x an excellent choice for battery-powered applications.
Other applications using the LMC606x include precision full-wave rectifiers, integrators, references, sample-and-hold circuits, and true instrumentation amplifiers.
This device is built with TIs advanced double-poly silicon-gate CMOS process.
For designs that require higher speed, see the LMC608x precision operational amplifiers.
