Texas Instruments LM76003-Q1 Product Info

Parameters

Rating	Automotive
Topology	Buck
Iout (max) (A)	3.5
Vin (max) (V)	60
Vin (min) (V)	3.5
Vout (max) (V)	57
Vout (min) (V)	1
Features	Enable, Forced PWM, Frequency synchronization, Light Load Efficiency, Over Current Protection, Power good, Pre-Bias Start-Up, Synchronous Rectification, Tracking, Wettable flanks package
Control mode	current mode
Operating temperature range (°C)	-40 to 125
Iq (typ) (A)	0.000015
Duty cycle (max) (%)	98

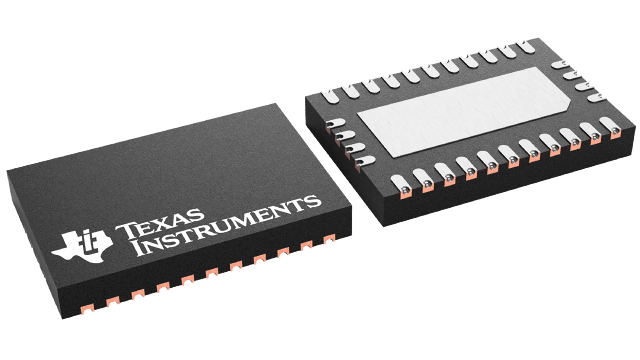

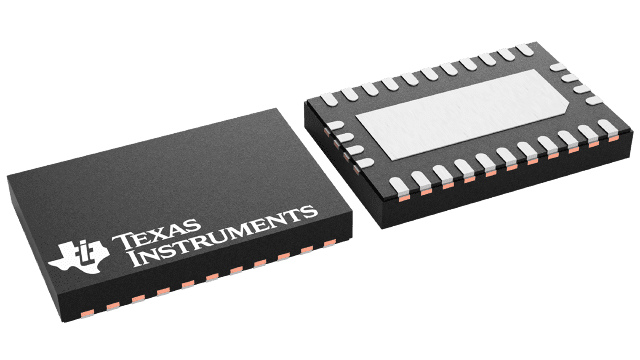

Package

WQFN (RNP)-30-24 mm² 6 x 4

Features

AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM ESD classification level 2
- Device CDM ESD classification level C5
Integrated synchronous rectification
Input voltage 3.5 V to 60 V (65 V maximum)
Output voltage 1 V to 95% V_IN
15-µA Quiescent current in regulation
Wide voltage conversion range
- t_ON-MIN = 65 ns (typical)
- t_OFF-MIN = 95 ns (typical)
System-level features
- Synchronization to external clock
- Power-good flag
- Adjustable soft-start (6.3 ms default)
Pin-selectable FPWM operation
Adjustable frequency range: 300 kHz to 2.2 MHz
High-efficiency at light-load architecture (PFM)
Protection features
- Cycle-by-cycle current limit
- Short-circuit protection with hiccup mode
- Overtemperature thermal shutdown protection
Create a custom design using the LM76002-Q1η/LM76003-Q1 with the WEBENCH^® Power Designer

AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM ESD classification level 2
- Device CDM ESD classification level C5
Integrated synchronous rectification
Input voltage 3.5 V to 60 V (65 V maximum)
Output voltage 1 V to 95% V_IN
15-µA Quiescent current in regulation
Wide voltage conversion range
- t_ON-MIN = 65 ns (typical)
- t_OFF-MIN = 95 ns (typical)
System-level features
- Synchronization to external clock
- Power-good flag
- Adjustable soft-start (6.3 ms default)
Pin-selectable FPWM operation
Adjustable frequency range: 300 kHz to 2.2 MHz
High-efficiency at light-load architecture (PFM)
Protection features
- Cycle-by-cycle current limit
- Short-circuit protection with hiccup mode
- Overtemperature thermal shutdown protection
Create a custom design using the LM76002-Q1η/LM76003-Q1 with the WEBENCH^® Power Designer

Description

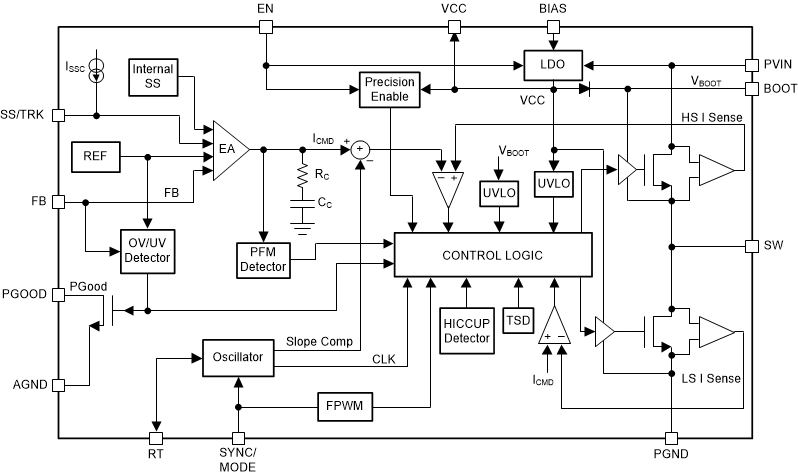

The LM76002-Q1/LM76003-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002-Q1) or 3.5 A (LM76003-Q1) of load current from an input up to 60 V. The LM76002-Q1/LM76003-Q1 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR25) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002-Q1/LM76003-Q1 device is available in the WQFN 30-pin leadless package with wettable flanks.
