ACTIVE
Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
GBW (typ) (MHz) |
100 |
BW at Acl (MHz) |
80 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
3000 |
Vn at flatband (typ) (nV√Hz) |
12 |
Vn at 1 kHz (typ) (nV√Hz) |
12 |

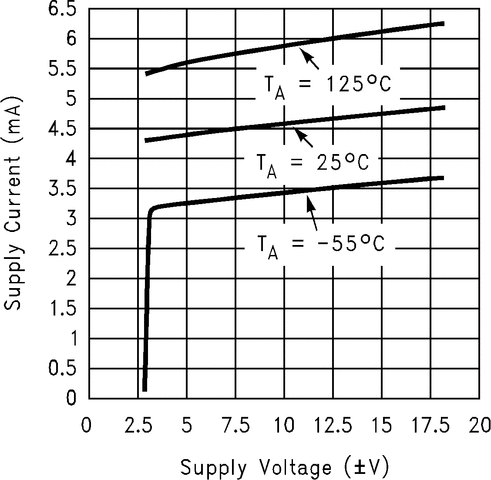

Iq per channel (typ) (mA) |
2.3 |
Vos (offset voltage at 25°C) (max) (mV) |
1.5 |
Rail-to-rail |
No |
Rating |
Space |
Operating temperature range (°C) |
-55 to 125 |
CMRR (typ) (dB) |
110 |
Input bias current (max) (pA) |
2500000 |
Offset drift (typ) (µV/°C) |
6 |
Iout (typ) (mA) |
85 |
2nd harmonic (dBc) |
50 |
3rd harmonic (dBc) |
50 |
Frequency of harmonic distortion measurement (MHz) |
5 |
Radiation, TID (typ) (krad) |
100 |
Radiation, SEL (MeV·cm2/mg) |
Bipolar |

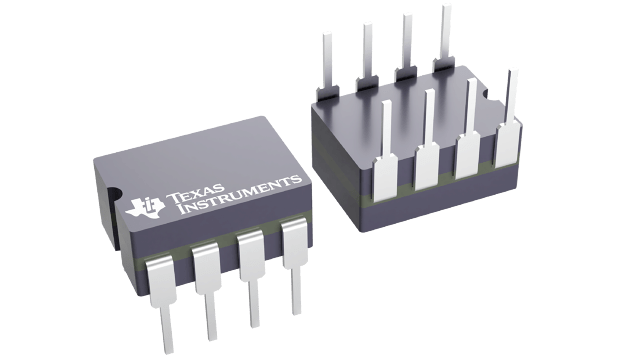

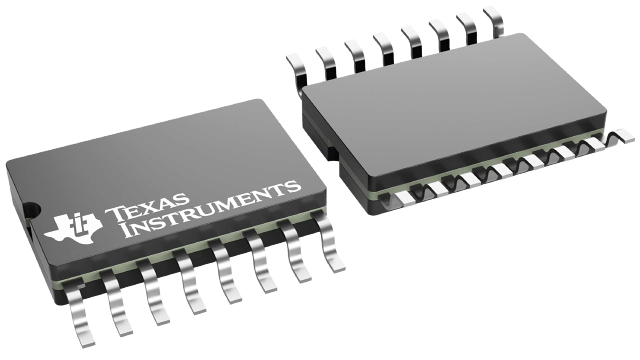

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87
| High Dose Rate | 300 krad(Si) |
| ELDRS Free | 100 krad(Si) |
The LM6172 is a dual high speed voltage feedback amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100MHz unity-gain bandwidth, 3000V/μs slew rate and 50mA of output current per channel, the LM6172 offers high performance in dual amplifiers; yet it only consumes 2.3mA of supply current each channel.
The LM6172 operates on ±15V power supply for systems requiring large voltage swings, such as ADSL, scanners and ultrasound equipment. It is also specified at ±5V power supply for low voltage applications such as portable video systems.
The LM6172 is built with National's advanced VIP III (Vertically Integrated PNP) complementary bipolar process.
