ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
24 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
14 |

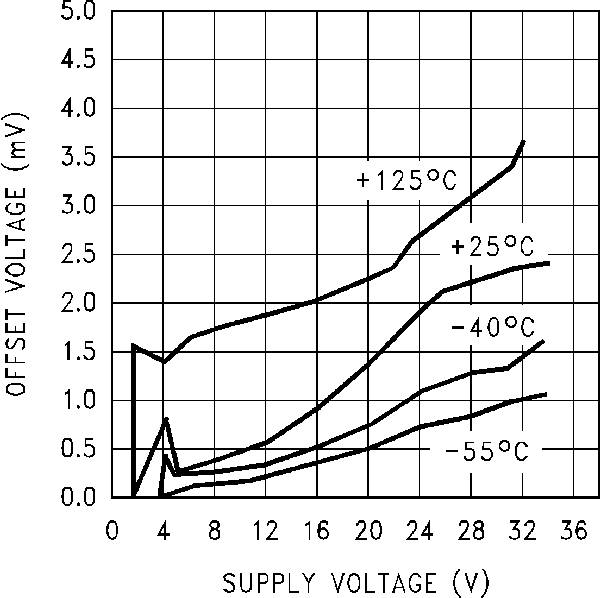

Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
0.36 |
Vn at 1 kHz (typ) (nV√Hz) |
27 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
5 |
Input bias current (max) (pA) |
140000 |
CMRR (typ) (dB) |
107 |
Iout (typ) (A) |
0.0043 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
-0.25 |
Input common mode headroom (to positive supply) (typ) (V) |
0.25 |
Output swing headroom (to negative supply) (typ) (V) |
0.032 |
Output swing headroom (to positive supply) (typ) (V) |
-0.048 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

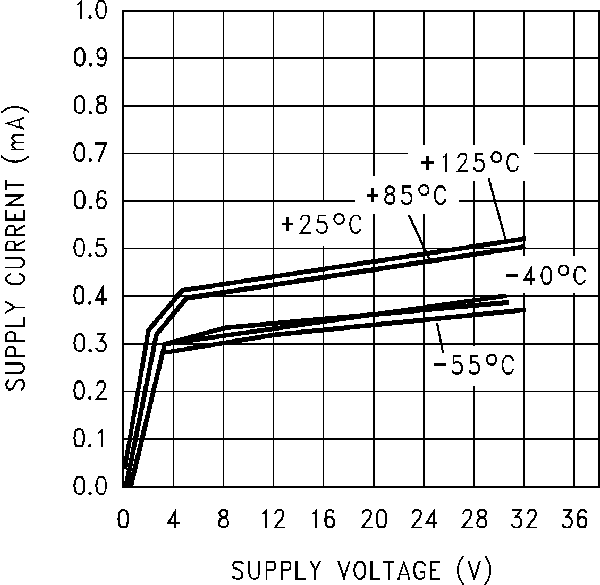

The LM6132/34 provides new levels of speed vs. power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 µA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life.
The LM6132/34 can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. The LM6132/34 can also drive large capacitive loads without oscillating.
Operating on supplies from 2.7 V to over 24 V, the LM6132/34 is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation.
