ACTIVE
Number of channels |
1 |
Topology |
Boost Controller, Buck-Boost Controller, SEPIC Controller |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Vin (min) (V) |
4.5 |
Vin (max) (V) |
75 |
Vout (min) (V) |
3 |
Vout (max) (V) |
72 |
Iout (max) (A) |
5 |
Iq (typ) (mA) |
1.6 |
Switching frequency (max) (kHz) |
2000 |
Features |
Adjustable Switch Frequency, Enable/Shutdown, Thermal shutdown |
HTSSOP (PWP)-14-32 mm² 5 x 6.4

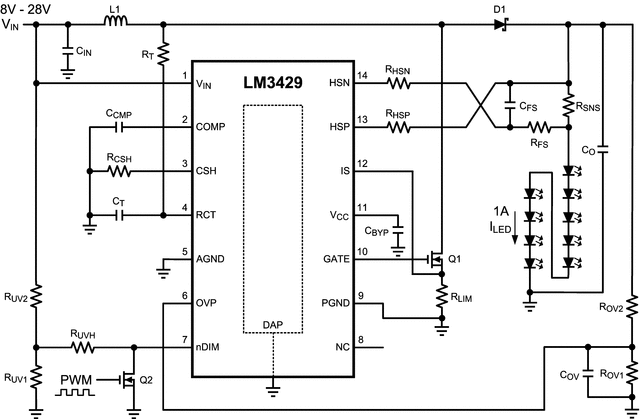

The LM3429 is a versatile high voltage N-channel MosFET controller for LED drivers. It can be easily configured in buck, boost, buck-boost and SEPIC topologies. This flexibility, along with an input voltage rating of 75V, makes the LM3429 ideal for illuminating LEDs in a very diverse, large family of applications.

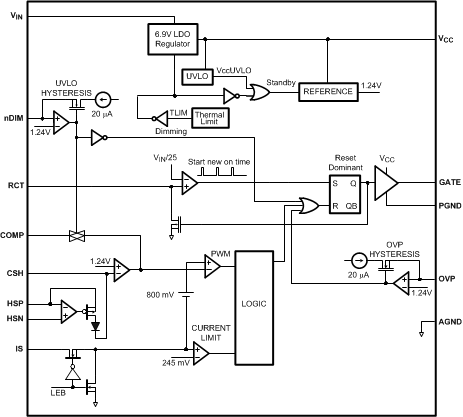

Adjustable high-side current sense voltage allows for tight regulation of the LED current with the highest efficiency possible. The LM3429 uses Predictive Off-time (PRO) control, which is a combination of peak current-mode control and a predictive off-timer. This method of control eases the design of loop compensation while providing inherent input voltage feed-forward compensation.
The LM3429 includes a high-voltage startup regulator that operates over a wide input range of 4.5 V to 75 V. The internal PWM controller is designed for adjustable switching frequencies of up to 2 MHz, thus enabling compact solutions. Additional features include analog dimming, PWM dimming, overvoltage protection, undervoltage lock-out, cycle-by-cycle current limit, and thermal shutdown.
