ACTIVE
Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
200 |
Number of input channels |
6 |
Interface type |
Byte-Wide, Parallel, SPI |
Architecture |
SAR |
Input type |
Single-ended |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
10 |
Input voltage range (min) (V) |
-10 |
Features |
Oscillator, Over-Voltage Protection, PGA |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
73 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
92.7 |
Digital supply (min) (V) |
2.3 |
Digital supply (max) (V) |
5.25 |
LQFP (PM)-64-144 mm² 12 x 12

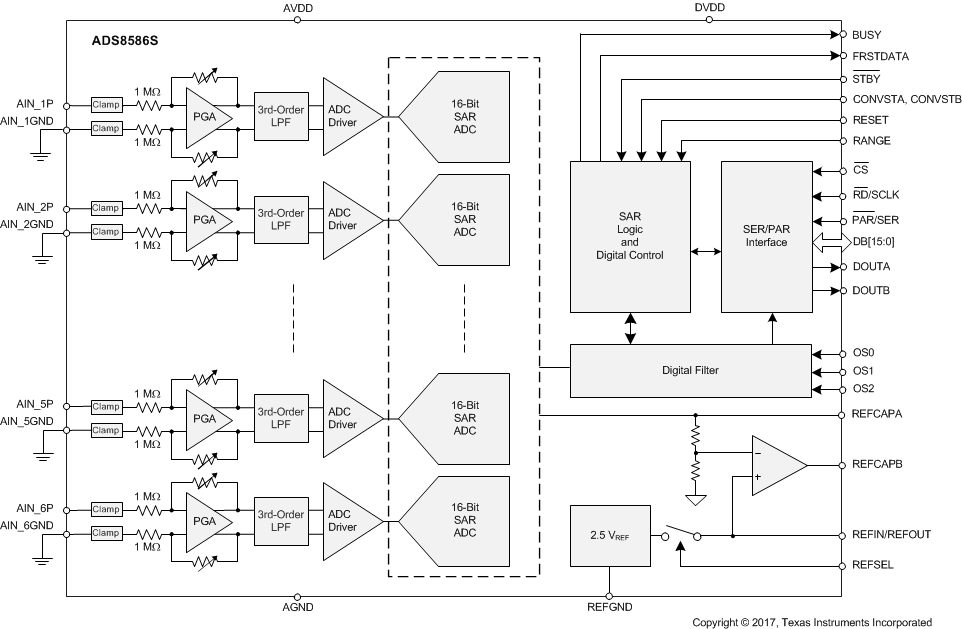

The ADS8586S device is an 6-channel, integrated data acquisition (DAQ) system based on a simultaneous-sampling, 16-bit successive approximation (SAR) analog-to-digital converter (ADC) operating at a maximum of 250 kSPS per channel. The device features a complete analog front-end for each channel, including a programmable gain amplifier (PGA) with high input impedance of 1 MΩ, input clamp, low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADC. A flexible digital interface supporting serial, parallel, and parallel byte communication enables the device to be used with a variety of host controllers.
The ADS8586S can be configured to accept ±10-V or ±5-V true bipolar inputs using a single 5-V supply. The high input impedance allows direct connection with sensors and transformers, thus eliminating the need for external driver circuits. The high performance and accuracy, along with zero-latency conversions offered by this device, also make the ADS8586S a great choice for many industrial automation and control applications.
