0
ACTIVE
Rating |
Catalog |
Iout (max) (A) |
0.04 |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
1.8 |
Vout (max) (V) |
-1.8 |
Vout (min) (V) |
-5.5 |
Features |
Enable, Unregulated |
Operating temperature range (°C) |
-40 to 85 |
Iq (typ) (A) |
0.00022 |
SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

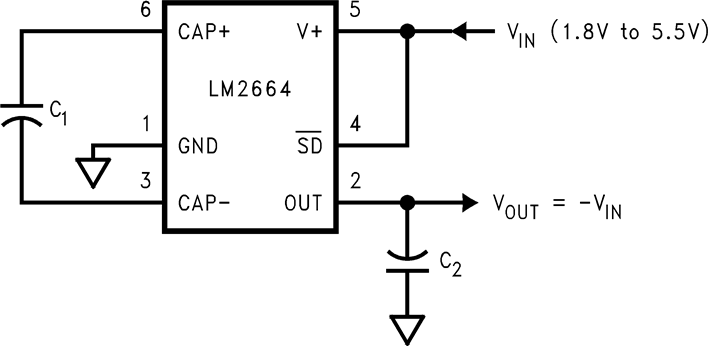

The LM2664 CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.8 V to 5.5 V to the corresponding negative voltage of −1.8 V to −5.5 V. The device uses two low-cost capacitors to provide up to 40 mA of output current.
The LM2664 operates at 160-kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 220 µA (operating efficiency greater than 91% with most loads) and 1-µA typical shutdown current, the LM2664 provides ideal performance for battery-powered systems.
