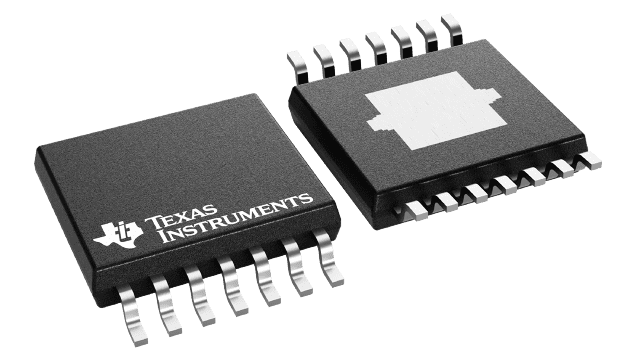

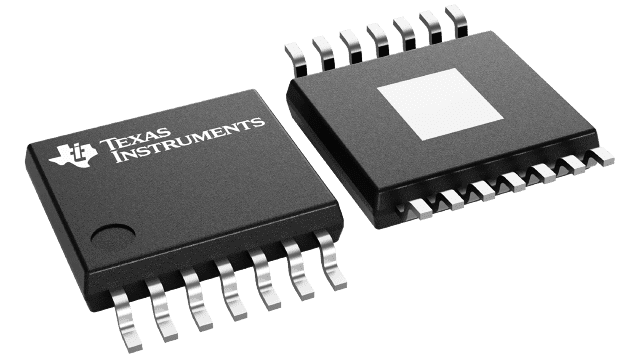

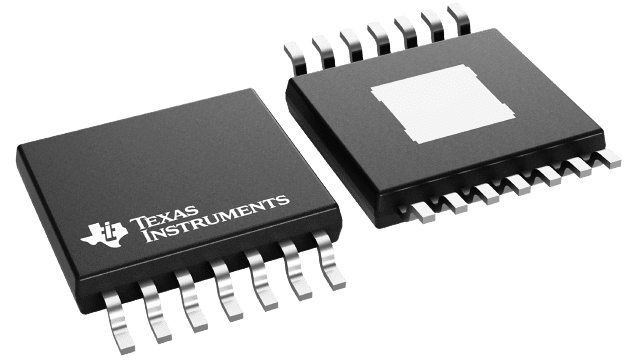

TPS1HC100-Q1

ACTIVE

Automotive, 100-mΩ, 2.5-A, one-channel smart high-side switch

Texas Instruments TPS1HC100-Q1 Product Info

1 April 2026 3

Parameters

Number of channels

1

Rating

Automotive

Operating voltage (max) (V)

28

Operating voltage (min) (V)

3

Ron (typ) (mΩ)

100

Imax (A)

2.5

Current limit (max) (A)

6.9

Current limit (min) (A)

0.633

Current limit type

Adjustable

FET

Internal

Features

Adjustable current limit, Automotive load dump, Current sense output, Fault reporting, Inductive load, Inrush current control, Short circuit protection, Thermal shutdown, Under voltage lock out

TI functional safety category

Functional Safety-Capable

Current limit accuracy

+/-18% @ 1.9A

Current sense accuracy

+/-6% @ 1A

Operating temperature range (°C)

-40 to 125

Function

Adjustable current limit, Automotive load dump compatibility, Current monitoring, Inductive load compatibility, Inrush current control, Short circuit protection, Thermal shutdown

Package

HTSSOP (PWP)-14-32 mm² 5 x 6.4

Features

  • Single-channel smart high-side power switch for 12V automotive systems with full diagnostics
    • Open-drain status output
    • Current sense analog output
  • Wide operating voltage 3V to 28V
  • Low standby current, < 0.5µA at 85°C
  • Operating junction temperature, –40°C to 150°C
  • 1.8V, 3.3V, and 5V logic compatible
  • Fault sense voltage scaling for ADC protection
  • Programmable current limit accuracy ±18% at 1.9A
  • High-accuracy current sense, ±6% at 1A
  • Protection
    • Overload and short-circuit protection
    • Inductive load negative voltage clamp
    • Undervoltage lockout (UVLO) protection
    • Thermal shutdown and swing with self recovery
    • Loss of GND, loss of supply protection
    • Reverse battery protection with external components
  • Diagnostic
    • On- and off-state output open-load and short-to-battery detection
    • Overload and short-to-ground detection
    • Thermal shutdown and swing detection
  • Qualifications
  • 14-pin thermally-enhanced PWP package
  • Single-channel smart high-side power switch for 12V automotive systems with full diagnostics
    • Open-drain status output
    • Current sense analog output
  • Wide operating voltage 3V to 28V
  • Low standby current, < 0.5µA at 85°C
  • Operating junction temperature, –40°C to 150°C
  • 1.8V, 3.3V, and 5V logic compatible
  • Fault sense voltage scaling for ADC protection
  • Programmable current limit accuracy ±18% at 1.9A
  • High-accuracy current sense, ±6% at 1A
  • Protection
    • Overload and short-circuit protection
    • Inductive load negative voltage clamp
    • Undervoltage lockout (UVLO) protection
    • Thermal shutdown and swing with self recovery
    • Loss of GND, loss of supply protection
    • Reverse battery protection with external components
  • Diagnostic
    • On- and off-state output open-load and short-to-battery detection
    • Overload and short-to-ground detection
    • Thermal shutdown and swing detection
  • Qualifications
  • 14-pin thermally-enhanced PWP package

Description

The TPS1HC100-Q1 device is a fully protected high-side power switch, with integrated NMOS power FET and charge pump, targeted for the intelligent control of various loads. Accurate current sense and programmable current limit features differentiate it from the market.

Low logic high threshold, VIH, of 1.5V on the input pins allow use of MCUs GPIO signals to 1.8V. High-accuracy current sensing provides a better real-time monitoring effect and more accurate diagnostics without further calibration. The external high-accuracy current limit allows setting the current limit value by application. The device highly improves the reliability of the system by effectively clamping the inrush current under start-up or short-circuit conditions. The TPS1HC100-Q1 device can be used as a high-side power switch for a wide variety of resistive, inductive, and capacitive loads, including low-wattage bulbs, LEDs, relays, solenoids, and heaters.
