ACTIVE
Rating |
Space |
Vin (max) (V) |
40 |
Vin (min) (V) |
4.2 |
Iout (max) (A) |
1.5 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
37 |
Vout (min) (V) |
1.25 |
Noise (µVrms) |
75 |
PSRR at 100 KHz (dB) |
40 |
Iq (typ) (mA) |
5 |
Thermal resistance θJA (°C/W) |
39 |
Load capacitance (min) (µF) |
0 |
Regulated outputs (#) |
1 |
Accuracy (%) |
4 |
Dropout voltage (Vdo) (typ) (mV) |
1200 |
Operating temperature range (°C) |
-55 to 125 |
Radiation, SEL (MeV·cm2/mg) |
Bipolar |
Radiation, TID (typ) (krad) |
100 |

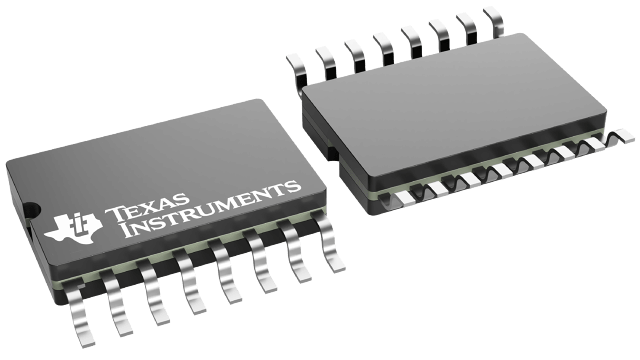

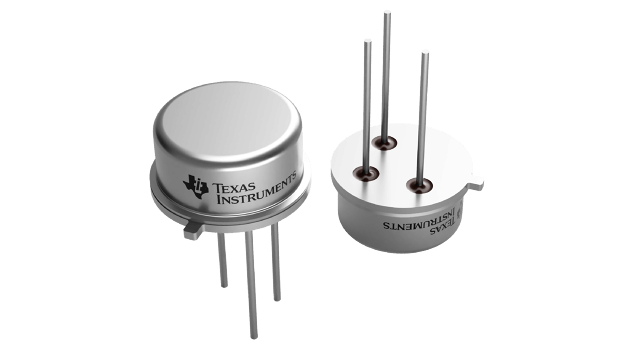

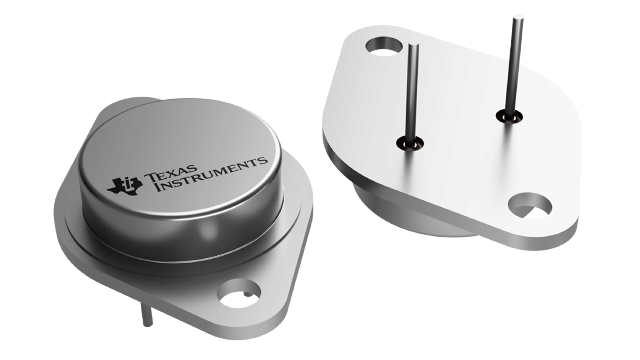

CFP (NAC)-16-62.9285 mm² 9.91 x 6.35

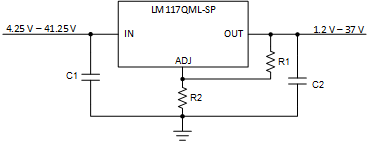

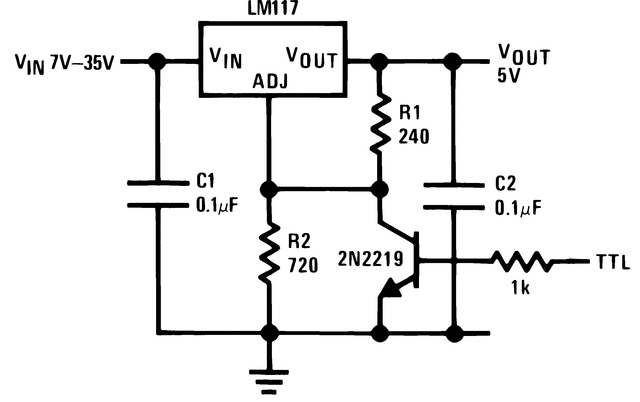

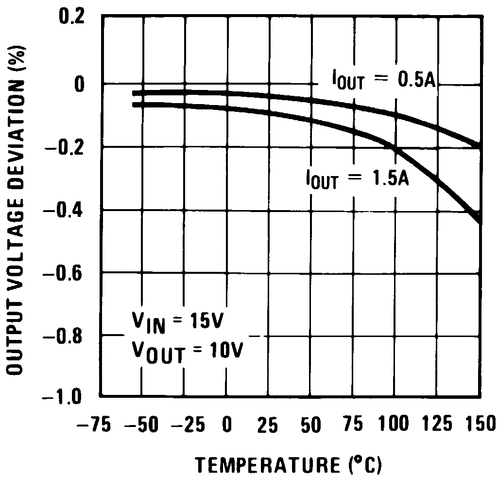

The LM117QML-SP 3-terminal positive voltage linear regulator is capable of supplying either 0.5 A or 1.5 A over a 1.2-V to 37-V output range. It is simple to use and requires only two external resistors to set the output voltage.
The regulator is "floating" and sees only the input-to-output differential voltage, thus enabling supplies of several hundred volts to be regulated as long as the maximum input-to-output differential is not exceeded.
The flight-proven LM117QML-SP offers full overload protection such as current limit, thermal overload protection, and safe area protection. It is exceptionally versatile and can also be used as an adjustable switching regulator, a programmable output regulator, a precision current regulator, and more.
For high voltage applications, the LM117HVQML-SP is a pin-to-pin drop-in replacement suitable for up to 60V. For the negative complement of the LM117QML-SP, see the LM137QML-SP.
