0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
44 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
3 |
Slew rate (typ) (V/µs) |
15 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
2 |
Vn at 1 kHz (typ) (nV√Hz) |
18 |
Rating |
Space |
Operating temperature range (°C) |
-55 to 125 |
Offset drift (typ) (µV/°C) |
10 |
Input bias current (max) (pA) |
200 |
CMRR (typ) (dB) |
100 |
Iout (typ) (A) |
0.025 |
Architecture |
FET |
Radiation, TID (typ) (krad) |
100 |
Radiation, SEL (MeV·cm2/mg) |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
3.5 |
Input common mode headroom (to positive supply) (typ) (V) |
0.5 |
Output swing headroom (to negative supply) (typ) (V) |
1.5 |
Output swing headroom (to positive supply) (typ) (V) |
-1.5 |

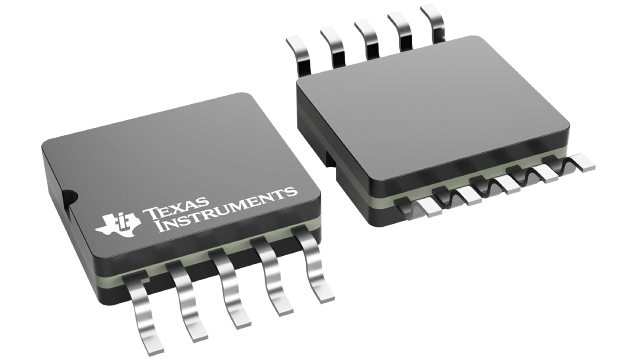

CFP (NAC)-10-62.9285 mm² 9.91 x 6.35
All trademarks are the property of their respective owners.

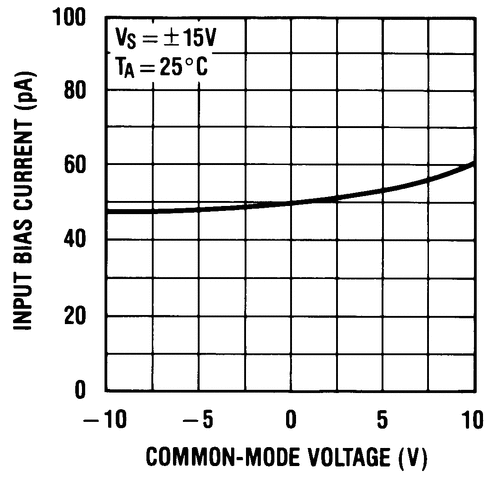

This device is a low cost, high speed, JFET input operational amplifier with very low input offset voltage and ensured input offset voltage drift. It requires low supply current yet maintains a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF411QML is pin compatible with the standard LM741 allowing designers to immediately upgrade the overall performance of existing designs.

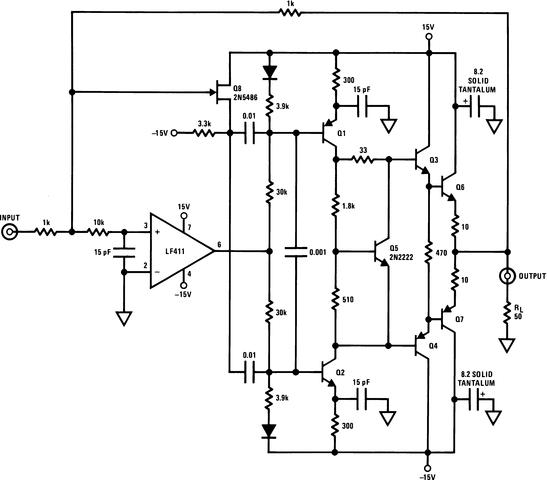

This amplifier may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth.
