Texas Instruments ISOW7841A-Q1 Product Info

Parameters

Rating	Automotive
Isolation rating	Basic, Reinforced
Number of channels	4
Forward/reverse channels	3 forward / 1 reverse
Data rate (max) (Mbps)	100
Working isolation voltage (VIOWM) (Vrms)	1000
Surge isolation voltage (VIOSM) (VPK)	10000
Transient isolation voltage (VIOTM) (VPK)	7071
Withstand isolation voltage (VISO) (Vrms)	5000
CMTI (min) (kV/µs)	100
Operating temperature range (°C)	-40 to 125
TI functional safety category	Functional Safety-Capable
Type	Digital isolator

SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device temperature Grade 1: –40°C to 125°C Ambient Operating Temperature
100 Mbps data rate
Functional Safety-Capable
- Documentation available to aid functional safety system design
Robust isolation barrier:
- >100-Year projected lifetime at 1 kV_RMS working voltage
- Up to 5000 V_RMS isolation rating
- Up to 10 kV_PK surge capability
- ±100 kV/µs minimum CMTI
Integrated high-efficiency DC-DC converter with on-chip transformer
3-V to 5.5-V Wide input supply range
Regulated 5-V or 3.3-V output
Up to 0.65-W output power
5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA
3.3 V to 3.3 V: Available load current ≥ 75 mA ; 3.3 V to 5 V: Available load current ≥ 40 mA
Soft-start to limit inrush current
Overload and short-circuit protection
Thermal shutdown
Default output: High and Low options
Low propagation delay: 13 ns Typ (5-V supply)
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
- Low emissions
16-pin wide SOIC package
Safety-related certifications:
- 7071-V_PK reinforced isolation per DIN V VDE V 0884-11:2017-01
- 5000-V_RMS isolation for 1 minute per UL 1577
- CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standards
- CQC Approval per GB4943.1-2011
- TUV Certification according to EN 60950-1 and EN 61010-1
- All certifications are planned

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device temperature Grade 1: –40°C to 125°C Ambient Operating Temperature
100 Mbps data rate
Functional Safety-Capable
- Documentation available to aid functional safety system design
Robust isolation barrier:
- >100-Year projected lifetime at 1 kV_RMS working voltage
- Up to 5000 V_RMS isolation rating
- Up to 10 kV_PK surge capability
- ±100 kV/µs minimum CMTI
Integrated high-efficiency DC-DC converter with on-chip transformer
3-V to 5.5-V Wide input supply range
Regulated 5-V or 3.3-V output
Up to 0.65-W output power
5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA
3.3 V to 3.3 V: Available load current ≥ 75 mA ; 3.3 V to 5 V: Available load current ≥ 40 mA
Soft-start to limit inrush current
Overload and short-circuit protection
Thermal shutdown
Default output: High and Low options
Low propagation delay: 13 ns Typ (5-V supply)
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
- Low emissions
16-pin wide SOIC package
Safety-related certifications:
- 7071-V_PK reinforced isolation per DIN V VDE V 0884-11:2017-01
- 5000-V_RMS isolation for 1 minute per UL 1577
- CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standards
- CQC Approval per GB4943.1-2011
- TUV Certification according to EN 60950-1 and EN 61010-1
- All certifications are planned

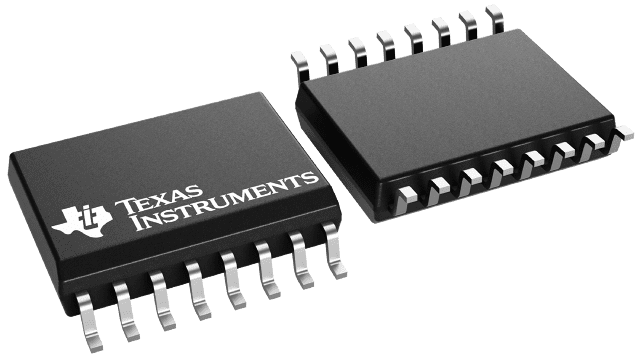

ISOW7841A-Q1:Automotive, quad-channel, 3/1, reinforced digital isolator with integrated power.Package:SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3
