DS9638QML
  • DS9638QML

DS9638QML

ACTIVE

RS-422 Dual High Speed Differential Line Driver

Texas Instruments DS9638QML Product Info

1 April 2026 2

Parameters

Number of receivers

0

Number of transmitters

2

Duplex

Half

Supply voltage (nom) (V)

5

Signaling rate (max) (Mbps)

10

Fault protection (V)

-15 to 15

Common-mode range (V)

-7 to 7

Number of nodes

32

Isolated

No

Supply current (max) (µA)

65000

Rating

Military

Operating temperature range (°C)

-55 to 125

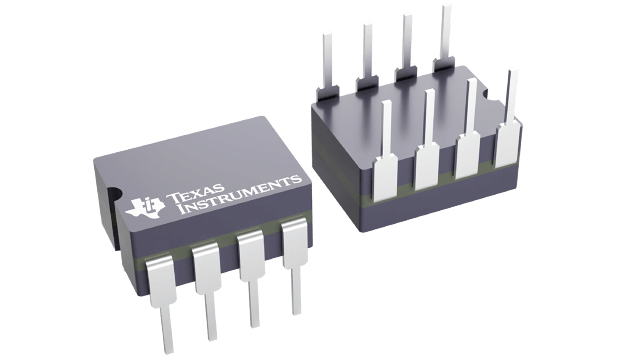

Package

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87

Features

  • Single 5V Supply
  • Schottky Technology
  • TTL and CMOS Compatible Inputs
  • Output Short Circuit Protection
  • Input Clamp Diodes
  • Complementary Outputs
  • Minimum Output Skew (<1.0 ns Typical)
  • 50 mA Output Drive Capability for 50Ω Transmission Lines
  • Meets EIA RS-422 Specifications
  • Propagation Delay of Less than 10 ns
  • “Glitchless” Differential Output
  • Delay Time Stable with VCC and Temperature Variations (<2.0 ns typical) ()
  • Extended Temperature Range

All trademarks are the property of their respective owners.

  • Single 5V Supply
  • Schottky Technology
  • TTL and CMOS Compatible Inputs
  • Output Short Circuit Protection
  • Input Clamp Diodes
  • Complementary Outputs
  • Minimum Output Skew (<1.0 ns Typical)
  • 50 mA Output Drive Capability for 50Ω Transmission Lines
  • Meets EIA RS-422 Specifications
  • Propagation Delay of Less than 10 ns
  • “Glitchless” Differential Output
  • Delay Time Stable with VCC and Temperature Variations (<2.0 ns typical) ()
  • Extended Temperature Range

All trademarks are the property of their respective owners.

Description

The DS9638 is a Schottky, TTL compatible, dual differential line driver designed specifically to meet the EIA Standard RS-422 specifications. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. The inputs are TTL compatible. The outputs are similar to totem pole TTL outputs, with active pull-up and pull-down. The device features a short circuit protected active pull-up with low output impedance and is specified to drive 50Ω transmission lines at high speed. The mini-CDIP provides high package density.

The DS9638 is a Schottky, TTL compatible, dual differential line driver designed specifically to meet the EIA Standard RS-422 specifications. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. The inputs are TTL compatible. The outputs are similar to totem pole TTL outputs, with active pull-up and pull-down. The device features a short circuit protected active pull-up with low output impedance and is specified to drive 50Ω transmission lines at high speed. The mini-CDIP provides high package density.
