DS25CP104A

ACTIVE

Texas Instruments DS25CP104A Product Info

1 April 2026 0

Function	Crosspoint, Equalizer
Protocols	CML, LVDS, LVPECL
Number of transmitters	4
Number of receivers	4
Supply voltage (V)	3.3
Signaling rate (Mbps)	3125
Input signal	CML, LVDS, LVPECL
Output signal	LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85

WQFN (RTA)-40-36 mm² 6 x 6

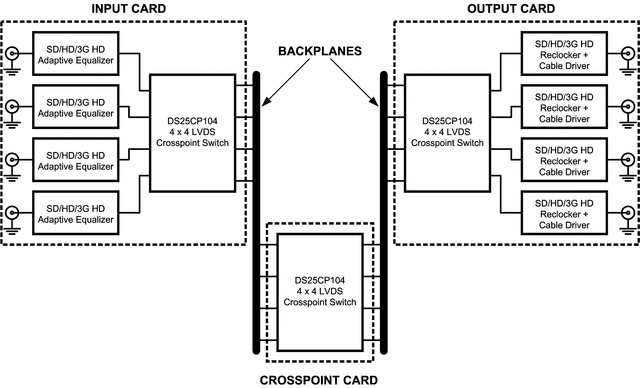

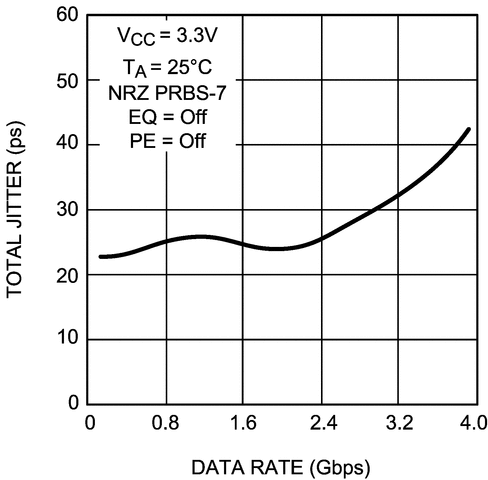

DC - 3.125 Gbps Low Jitter, Low Skew, Low Power Operation

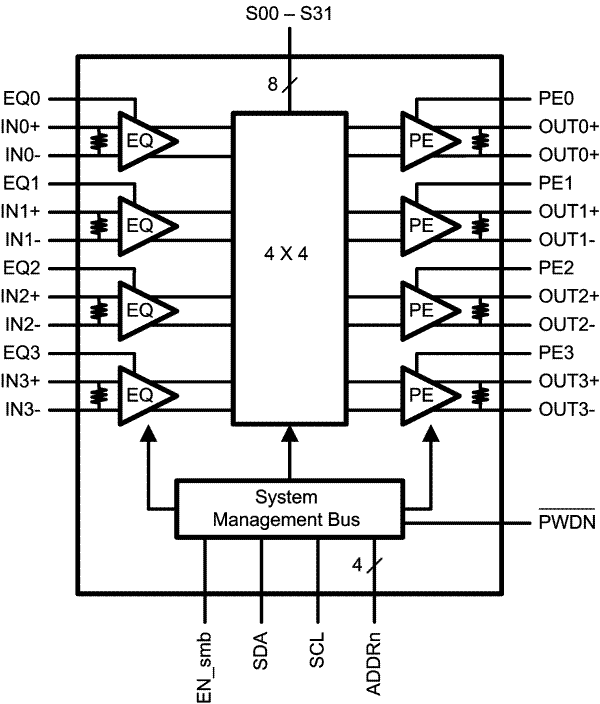

Pin and SMBus Configurable, Fully Differential, Non-Blocking Architecture
Pin (Two Levels) and SMBus (Four Levels) Selectable Pre-Emphasis and Equalization Eliminate ISI Jitter
Wide Input Common Mode Range Enables Easy Interface to CML and LVPECL Drivers
LOS Circuitry Detects Open Inputs Fault Condition
On-Chip 100Ω Input and Output Termination Minimizes Insertion and Return Losses, Reduces Component Count, Minimizes Board Space The DS25CP114 Eliminates the On-Chip Input Termination for Added Design Flexibility.
8 kV ESD on LVDS I/O Pins Protects Adjoining Components

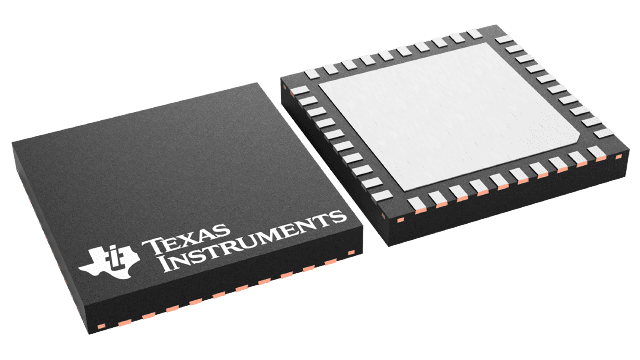

Small 6 mm x 6 mm WQFN-40 Space Saving Package

All trademarks are the property of their respective owners.

DC - 3.125 Gbps Low Jitter, Low Skew, Low Power Operation
Pin and SMBus Configurable, Fully Differential, Non-Blocking Architecture
Pin (Two Levels) and SMBus (Four Levels) Selectable Pre-Emphasis and Equalization Eliminate ISI Jitter
Wide Input Common Mode Range Enables Easy Interface to CML and LVPECL Drivers
LOS Circuitry Detects Open Inputs Fault Condition
On-Chip 100Ω Input and Output Termination Minimizes Insertion and Return Losses, Reduces Component Count, Minimizes Board Space The DS25CP114 Eliminates the On-Chip Input Termination for Added Design Flexibility.
8 kV ESD on LVDS I/O Pins Protects Adjoining Components
Small 6 mm x 6 mm WQFN-40 Space Saving Package

All trademarks are the property of their respective owners.

DS25CP104A:3.125-Gbps 4x4 LVDS crosspoint switch with TX pre-emphasis & RX equalization.Package:WQFN (RTA)-40-36 mm² 6 x 6
