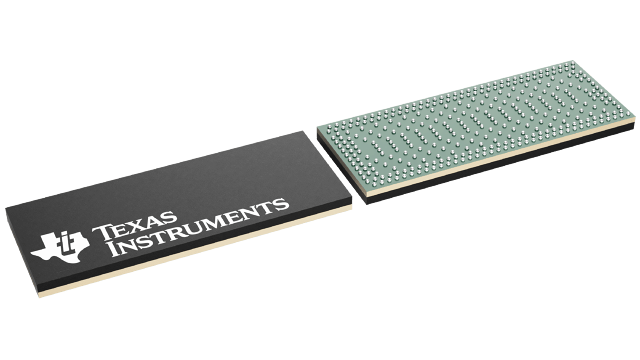

DS160PR1601
  • DS160PR1601
  • DS160PR1601

DS160PR1601

ACTIVE

PCIe® 4.0 16-Gbps 16-Lane linear redriver

Texas Instruments DS160PR1601 Product Info

1 April 2026 0

Parameters

Type

Redriver

Protocols

CXL, PCIe1, PCIe2, PCIe3, PCIe4, UPI

Number of channels

32

Speed (max) (Gbpp)

16

Supply voltage (V)

3.3

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

NFBGA (ZDG)-354-203.721 mm² 22.89 x 8.9

Features

  • 16-lane linear redriver supporting PCIe 4.0, and UPI 2.0
  • Supports data rates up to 16-Gbps
  • P2P with Intel retimer common footprint
  • 64 integrated AC coupling capacitors on TX pins inside package saving board space
  • CTLE boosts of 16 dB at 8 GHz
  • Analog EyeScan to aid redriver tuning, debug and remote monitoring
  • Ultra-low latency of 130 ps
  • Low additive random jitter of 100 fs for PRBS data
  • Excellent RX/TX return loss of −13 dB at 8 GHz
  • Single 3.3 V supply
  • Low active power of 160 mW/channel
  • I2C/SMBus or EEPROM programming
  • Automatic receiver detection for PCIe use cases
  • Seamless support for PCIe link training
  • Internal voltage regulator provides immunity to supply noise
  • High speed production testing for reliable manufacturing
  • Support for x4, x8, x16 bus width
  • 8.90 mm × 22.80 mm BGA package
  • 16-lane linear redriver supporting PCIe 4.0, and UPI 2.0
  • Supports data rates up to 16-Gbps
  • P2P with Intel retimer common footprint
  • 64 integrated AC coupling capacitors on TX pins inside package saving board space
  • CTLE boosts of 16 dB at 8 GHz
  • Analog EyeScan to aid redriver tuning, debug and remote monitoring
  • Ultra-low latency of 130 ps
  • Low additive random jitter of 100 fs for PRBS data
  • Excellent RX/TX return loss of −13 dB at 8 GHz
  • Single 3.3 V supply
  • Low active power of 160 mW/channel
  • I2C/SMBus or EEPROM programming
  • Automatic receiver detection for PCIe use cases
  • Seamless support for PCIe link training
  • Internal voltage regulator provides immunity to supply noise
  • High speed production testing for reliable manufacturing
  • Support for x4, x8, x16 bus width
  • 8.90 mm × 22.80 mm BGA package

Description

The DS160PR1601 is a 32-channel (16-channel in each direction) x16 (16-lane) low-power high-performance linear repeater or redriver designed to support PCIe 4.0, UPI 2.0 and other interfaces up to 16 Gbps.

The DS160PR1601 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The equalizer can open an input eye that is completely closed due to inter-symbol interference (ISI) induced by an interconnect medium, such as PCB traces. The CTLE receiver is followed by a linear output driver. The linear datapaths of DS160PR1601 preserves transmit preset signal characteristics. The linear redriver becomes part of the passive channel that as a whole get link trained for best transmit and receive equalization settings. This transparency in the link training protocol results in best electrical link and lowest possible latency. Low channel-channel cross-talk, low additive jitter and excellent return loss makes the device almost a passive element in the link, but with its equalization.

.

.

The DS160PR1601 is a 32-channel (16-channel in each direction) x16 (16-lane) low-power high-performance linear repeater or redriver designed to support PCIe 4.0, UPI 2.0 and other interfaces up to 16 Gbps.

The DS160PR1601 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The equalizer can open an input eye that is completely closed due to inter-symbol interference (ISI) induced by an interconnect medium, such as PCB traces. The CTLE receiver is followed by a linear output driver. The linear datapaths of DS160PR1601 preserves transmit preset signal characteristics. The linear redriver becomes part of the passive channel that as a whole get link trained for best transmit and receive equalization settings. This transparency in the link training protocol results in best electrical link and lowest possible latency. Low channel-channel cross-talk, low additive jitter and excellent return loss makes the device almost a passive element in the link, but with its equalization.

.

.
