Texas Instruments DLPC4420 Product Info

Parameters

Component type	Display Controller
Chipset family	DLPC4420, DLP470TE, DLP660TE, DLP780TE, DLPA300
Display resolution (max)	4K UHD (3840x2160)
Operating temperature range (°C)	0 to 55
Rating	Catalog

Package

PBGA (ZPC)-516-See data sheet

Features

Dual DLP controller support for up to 4K ultra high definition (UHD) resolution display using digital micromirror devices (DMD):
- Up to 4K at 60 Hz
- Up to 1080p at 240 Hz
- Up to 1080p at 120 Hz (3D)
Provides single 30-bit or dual 60-bit input pixel interface:
- RGB data format
- 8, 9, or 10 bits per color
- Pixel clock up to 600 MHz in dual 30-bit mode on dual controllers
High-speed, low voltage differential signaling (LVDS) DMD interface
150-MHz ARM946™ microprocessor
Microprocessor peripherals
- Programmable pulse-width modulation (PWM) and capture timers
- Three I²C ports, three UART ports and three SSP ports
- One USB 1.1 secondary port

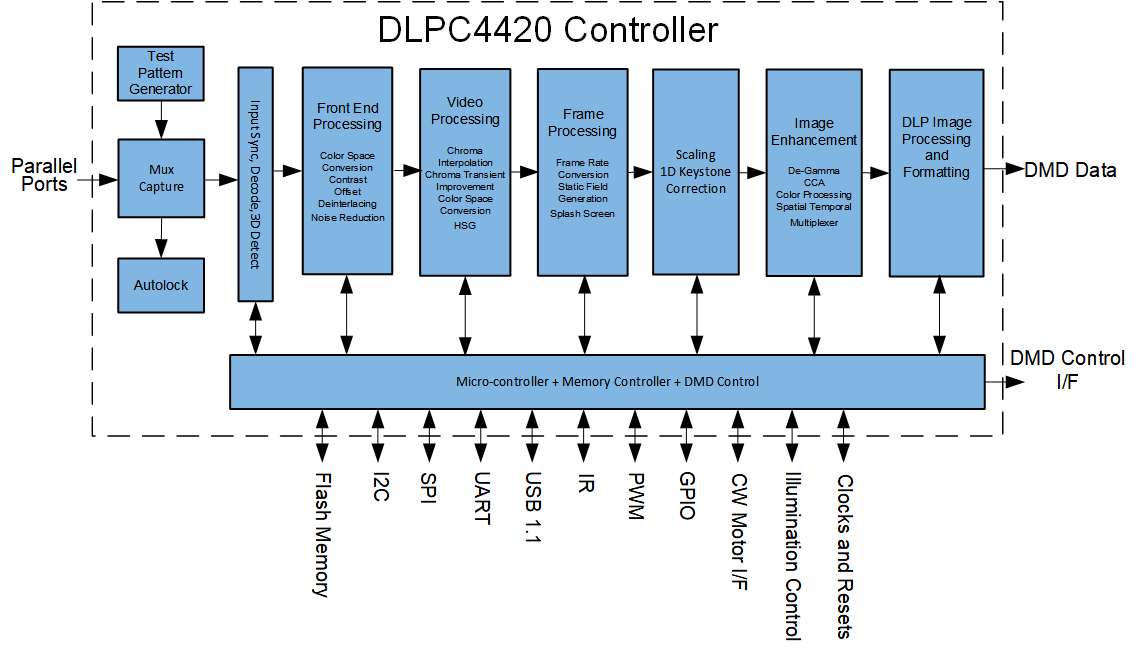

Image processing
- Multiple image processing algorithms
- Frame rate conversion
- Color coordinate adjustment
- Programmable color space conversion
- Programmable degamma and splash
- Integrated support for 3-D display
- 1-D keystone correction
Integrated clock generation circuitry
- Operates on a single 20-MHz crystal
- Integrated spread spectrum clocking
External memory support
- Parallel flash for microprocessor and PWM sequence
516-pin plastic ball grid array package
Supports LED and laser hybrid illuminations

Dual DLP controller support for up to 4K ultra high definition (UHD) resolution display using digital micromirror devices (DMD):
- Up to 4K at 60 Hz
- Up to 1080p at 240 Hz
- Up to 1080p at 120 Hz (3D)
Provides single 30-bit or dual 60-bit input pixel interface:
- RGB data format
- 8, 9, or 10 bits per color
- Pixel clock up to 600 MHz in dual 30-bit mode on dual controllers
High-speed, low voltage differential signaling (LVDS) DMD interface
150-MHz ARM946™ microprocessor
Microprocessor peripherals
- Programmable pulse-width modulation (PWM) and capture timers
- Three I²C ports, three UART ports and three SSP ports
- One USB 1.1 secondary port
Image processing
- Multiple image processing algorithms
- Frame rate conversion
- Color coordinate adjustment
- Programmable color space conversion
- Programmable degamma and splash
- Integrated support for 3-D display
- 1-D keystone correction
Integrated clock generation circuitry
- Operates on a single 20-MHz crystal
- Integrated spread spectrum clocking
External memory support
- Parallel flash for microprocessor and PWM sequence
516-pin plastic ball grid array package
Supports LED and laser hybrid illuminations

Description

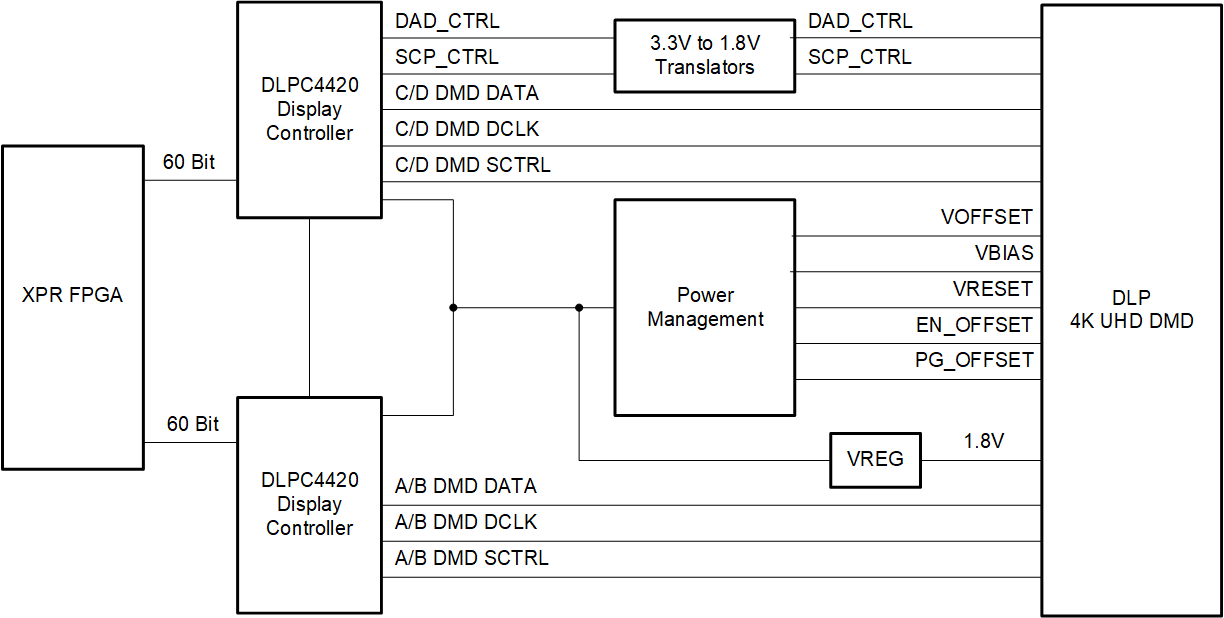

The DLPC4420 is a digital display controller for the DLP display chipset. The chipset comprises the DLPC4420 display controller, the DLP digital micromirror device (DMD), the DLPA100controller power management device, and the DLPA300DMD micromirror driver (refer to the DMD data sheet). This solution is a great fit for display systems that require high resolution, high brightness, and system simplicity. To ensure reliable operation, the DLPC4420 display controller must always be used with a DLP DMD and respective DLP power management devices.
