ACTIVE
Rating |
Catalog |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
1.8 |
Iout (max) (A) |
0.15 |
Output options |
Fixed Output |
Vout (max) (V) |
3.7 |
Vout (min) (V) |
1.3 |
Fixed output options (V) |
1.3, 1.5, 1.8, 2, 2.5, 2.8, 3, 3.3, 3.7 |
Noise (µVrms) |
125 |
PSRR at 100 KHz (dB) |
32 |
Iq (typ) (mA) |
0.029 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
196 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
200 |
Operating temperature range (°C) |
-40 to 125 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

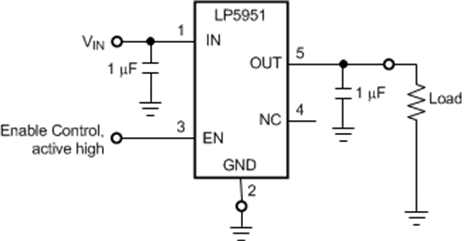

The LP5951 regulator is designed to meet the requirements of portable battery-powered systems providing a regulated output voltage and low quiescent current. When switched to shutdown mode via a logic signal at the Enable (EN) pin, the power consumption is reduced to virtually zero.
The LP5951 is designed to be stable with small 1-µF ceramic capacitors. The device also features internal protection against short-circuit currents and over-temperature conditions.
Performance is specified for a –40°C to 125°C temperature range.
The device is available in fixed output voltages in the range of 1.3 V to 3.7 V. For availability, please contact your local TI sales office.
