ACTIVE
Resolution (Bits) |
12 |
Number of DAC channels |
1 |
Interface type |
Parallel |
Output type |
Unbuffered Current |
INL (max) (±LSB) |
1 |
Settling time (µs) |
0.2 |
Reference type |
Ext |
Architecture |
Multiplying DAC |
Rating |
Catalog |
Sample/update rate (Msps) |
10 |
Power consumption (typ) (mW) |
0.0275 |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4
All trademarks are the property of their respective owners.

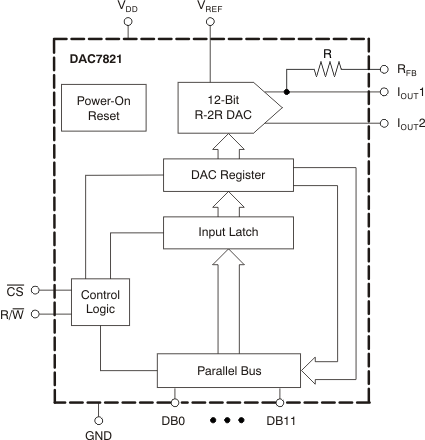

The DAC7821 is a CMOS 12-bit current output digital-to-analog converter (DAC). This device operates from a single 2.5V to 5.5V power supply, making it suitable for battery-powered and many other applications.
This DAC operates with a fast parallel interface. Data readback allows the user to read the contents of the DAC register via the DB pins. On power-up, the internal register and latches are filled with zeroes and the DAC outputs are at zero scale.
The DAC7821 offers excellent 4-quadrant multiplication characteristics, with a large signal multiplying bandwidth of 10MHz. The applied external reference input voltage (VREF) determines the full-scale output current. An integrated feedback resistor (RFB) provides temperature tracking and full-scale voltage output when combined with an external current-to-voltage precision amplifier.
The DAC7821 is available in a 20-lead TSSOP package.
