ACTIVE
VDS (V) |
60 |
VGS (V) |
20 |
Type |
N-channel |
Configuration |
Single |
Rds(on) at VGS=10 V (max) (mΩ) |
6.3 |
Rds(on) at VGS=4.5 V (max) (mΩ) |
9 |
VGSTH typ (typ) (V) |
1.9 |
QG (typ) (nC) |
28 |
QGD (typ) (nC) |
3.9 |
QGS (typ) (nC) |
9.4 |
ID - silicon limited at TC=25°C (A) |
118 |
ID - package limited (A) |
100 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 175 |

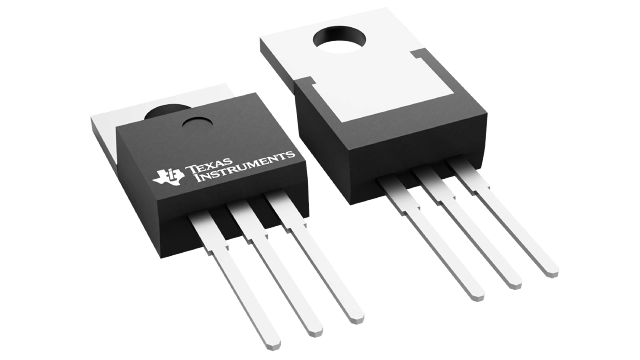

TO-220 (KCS)-3-46.228 mm² 10.16 x 4.55
This 60V, 5.0mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
