CSD86330Q3D
  • CSD86330Q3D
  • CSD86330Q3D

CSD86330Q3D

ACTIVE

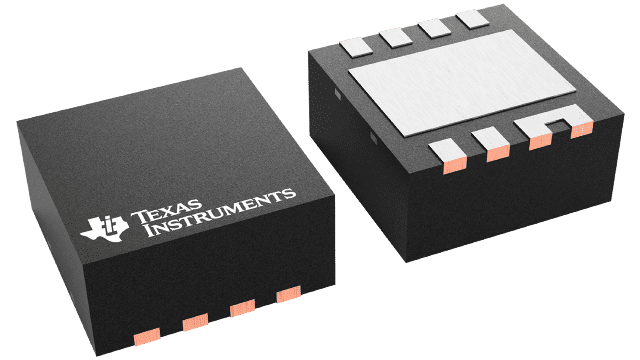

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 20 A

Texas Instruments CSD86330Q3D Product Info

1 April 2026 0

Parameters

VDS (V)

25

VGS (V)

10

Type

Power block

Configuration

PowerBlock

ID - continuous drain current at TA=25°C (A)

20

Power loss (W)

1.9

Ploss current (A)

15

Features

Power supply

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

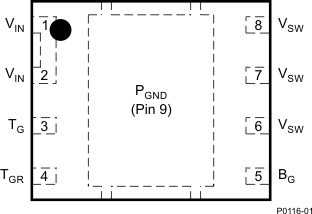

LSON-CLIP (DQZ)-8-10.89 mm² 3.3 x 3.3

Features

  • Half-Bridge Power Block
  • 90% System Efficiency at 15 A
  • Up to 20 A Operation
  • High Frequency Operation (Up To 1.5 MHz)
  • High Density – SON 3.3 mm × 3.3 mm Footprint
  • Optimized for 5 V Gate Drive
  • Low Switching Losses
  • Ultra Low Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Pb-Free Terminal Plating
  • APPLICATIONS
    • Synchronous Buck Converters
      • High Frequency Applications
      • High Current, Low Duty Cycle Applications
    • Multiphase Synchronous Buck Converters
    • POL DC-DC Converters
    • IMVP, VRM, and VRD Applications

  • Half-Bridge Power Block
  • 90% System Efficiency at 15 A
  • Up to 20 A Operation
  • High Frequency Operation (Up To 1.5 MHz)
  • High Density – SON 3.3 mm × 3.3 mm Footprint
  • Optimized for 5 V Gate Drive
  • Low Switching Losses
  • Ultra Low Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Pb-Free Terminal Plating
  • APPLICATIONS
    • Synchronous Buck Converters
      • High Frequency Applications
      • High Current, Low Duty Cycle Applications
    • Multiphase Synchronous Buck Converters
    • POL DC-DC Converters
    • IMVP, VRM, and VRD Applications

Description

The CSD86330Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high current, high efficiency, and high frequency capability in a small 3.3 mm × 3.3 mm outline. Optimized for 5 V gate drive applications, this product offers a flexible solution capable of offering a high density power supply when paired with any 5 V gate drive from an external controller/driver.

The CSD86330Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high current, high efficiency, and high frequency capability in a small 3.3 mm × 3.3 mm outline. Optimized for 5 V gate drive applications, this product offers a flexible solution capable of offering a high density power supply when paired with any 5 V gate drive from an external controller/driver.
