TSD5402-Q1
  • TSD5402-Q1
  • TSD5402-Q1
  • TSD5402-Q1
  • TSD5402-Q1

TSD5402-Q1

ACTIVE

Automotive, class-D sensor driver amplifier with integrated protections and I2C diagnostics

Texas Instruments TSD5402-Q1 Product Info

1 April 2026 1

Parameters

Iq per channel (typ) (mA)

16

Rating

Automotive

Operating temperature range (°C)

-40 to 125

Architecture

Class-D

Package

HTSSOP (PWP)-16-32 mm² 5 x 6.4

Features

  • AEC-Q100 Qualified for automotive applications
    • Temperature grade 1: –40°C to 125°C, TA
  • Mono BTL Digital power amplifier
  • 8W Output power at 10% THD+N into 4Ω
  • 4.5V to 18V Operating range

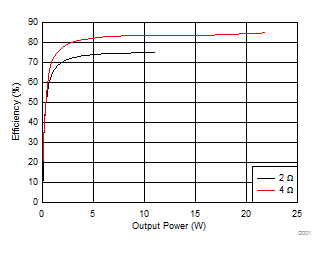

  • 83% Efficiency into 4Ω
  • Differential analog input

  • Power Guard protection (adjustable voltage limiter)

  • 75dB Power-supply rejection ratio (PSRR)
  • Load diagnostic functions:
    • Open and shorted output load
    • Output-to-power and output-to-ground shorts
  • Protection and monitoring functions:
    • Short-circuit protection
    • 40V Load dump protection per ISO-7637-2
    • Output DC Level detection
    • Overtemperature protection
    • Overvoltage and Undervoltage protection

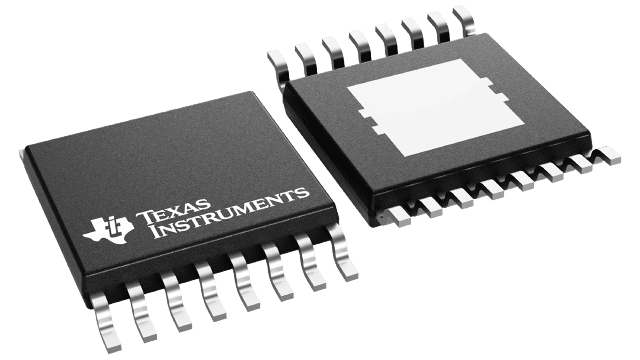

  • Thermally enhanced 16-Pin HTSSOP (PWP) package with PowerPAD™ package (pad down)
  • Designed for automotive EMC requirements
  • ISO9000: 2002 TS16949 certified
  • 40V Load dump protection in standby
  • Non-blocking I2C in standby
  • AEC-Q100 Qualified for automotive applications
    • Temperature grade 1: –40°C to 125°C, TA
  • Mono BTL Digital power amplifier
  • 8W Output power at 10% THD+N into 4Ω
  • 4.5V to 18V Operating range
  • 83% Efficiency into 4Ω
  • Differential analog input

  • Power Guard protection (adjustable voltage limiter)

  • 75dB Power-supply rejection ratio (PSRR)
  • Load diagnostic functions:
    • Open and shorted output load
    • Output-to-power and output-to-ground shorts
  • Protection and monitoring functions:
    • Short-circuit protection
    • 40V Load dump protection per ISO-7637-2
    • Output DC Level detection
    • Overtemperature protection
    • Overvoltage and Undervoltage protection
  • Thermally enhanced 16-Pin HTSSOP (PWP) package with PowerPAD™ package (pad down)
  • Designed for automotive EMC requirements
  • ISO9000: 2002 TS16949 certified
  • 40V Load dump protection in standby
  • Non-blocking I2C in standby

Description

The TSD5402-Q1 is a class-D sensor driving amplifier, ideal for use in automotive and industrial applications, including, but not limited to: resolver-based motor control, braking systems, electric power steering, servos, and flight control surfaces. The wide operating voltage range and excellent efficiency make the device ideal for applications that require design flexibility. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the load through I2C. The integrated shorted load and open load diagnostics allows systems to avoid external implementations.

The TSD5402-Q1 is a class-D sensor driving amplifier, ideal for use in automotive and industrial applications, including, but not limited to: resolver-based motor control, braking systems, electric power steering, servos, and flight control surfaces. The wide operating voltage range and excellent efficiency make the device ideal for applications that require design flexibility. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the load through I2C. The integrated shorted load and open load diagnostics allows systems to avoid external implementations.
