CD74HC125-Q1
  • CD74HC125-Q1
  • CD74HC125-Q1
  • CD74HC125-Q1

CD74HC125-Q1

ACTIVE

Automotive 4-ch, 2-V to 6-V buffers with 3-state outputs

Texas Instruments CD74HC125-Q1 Product Info

1 April 2026 1

Parameters

Technology family

HC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

6

Number of channels

4

IOL (max) (mA)

6

Supply current (max) (µA)

160

IOH (max) (mA)

-6

Input type

Standard CMOS

Output type

3-State

Features

Balanced outputs, High speed (tpd 10-50ns), Input clamp diode

Rating

Automotive

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • AEC-Q100 Qualified for automotive applications:
    • Device temperature grade 1:
      –40°C to +125°C, TA
  • Buffered inputs
  • Positive and negative input clamp diodes
  • Wide operating voltage range: 2 V to 6 V
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic ICs
  • AEC-Q100 Qualified for automotive applications:
    • Device temperature grade 1:
      –40°C to +125°C, TA
  • Buffered inputs
  • Positive and negative input clamp diodes
  • Wide operating voltage range: 2 V to 6 V
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic ICs

Description

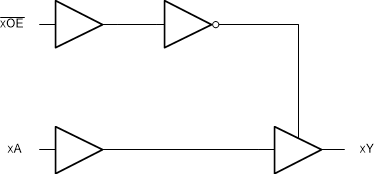

This device contains four independent buffers with 3-state outputs. Each gate performs the Boolean function Y = A in positive logic.

This device contains four independent buffers with 3-state outputs. Each gate performs the Boolean function Y = A in positive logic.
