Texas Instruments CD74AC373 Product Info

Parameters

Number of channels	8
Technology family	AC
Supply voltage (min) (V)	1.5
Supply voltage (max) (V)	5.5
Input type	Standard CMOS
Output type	3-State
Clock frequency (max) (MHz)	100
IOL (max) (mA)	24
IOH (max) (mA)	-24
Supply current (max) (µA)	160
Features	Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode
Operating temperature range (°C)	-55 to 125
Rating	Catalog

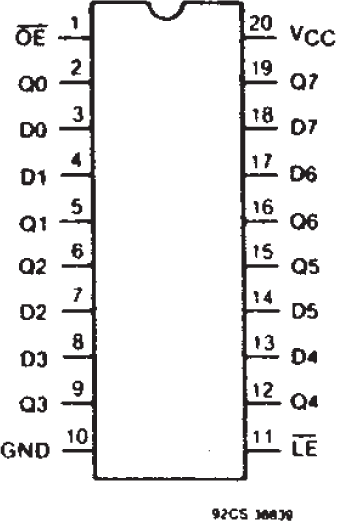

PDIP (N)-20-228.702 mm² 24.33 x 9.4

SCR-Latchup-resistant CMOS process and circuit design
Speed of bipolar FAST*/AS/S with significantly reduced power consumption
Balanced propagation delays
AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply
±24mA output drive current
- Fanout to 15 FAST* ICs
- qDrives 50ohm transmission lines

⁽¹⁾*FAST is a Registered Trademark of Fairchild Semiconductor Corp.

SCR-Latchup-resistant CMOS process and circuit design
Speed of bipolar FAST*/AS/S with significantly reduced power consumption
Balanced propagation delays
AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply
±24mA output drive current
- Fanout to 15 FAST* ICs
- qDrives 50ohm transmission lines

⁽¹⁾*FAST is a Registered Trademark of Fairchild Semiconductor Corp.

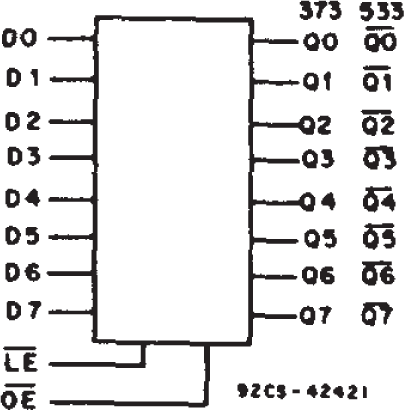

The RCA-CDx4AC373 and the CDx4ACT373 octal transparent 3-state latches use the RCA Advanced CMOS technology.
