Texas Instruments MSP430FR2672 Product Info

Parameters

CPU	MSP430
Frequency (MHz)	16
Flash memory (kByte)	8
RAM (kByte)	2
ADC type	12-bit SAR
Features	Advanced sensing, CapTIvate Touch I/O, Real-time clock
UART	2
Number of ADC channels	8
SPI	4
USB	No
Operating temperature range (°C)	-40 to 105
Rating	Catalog
Communication interface	I2C, SPI, UART
Operating system	BareMetal (No OS), TI RTOS
Hardware accelerators	0
Nonvolatile memory (kByte)	8
Number of GPIOs	27
Number of I2Cs	2
Security	Secure debug

Package

VQFN (RHB)-32-25 mm² 5 x 5

Features

CapTIvate™ technology – capacitive touch
- Performance
  - Fast electrode scanning with four simultaneous scans
  - Support for high-resolution sliders with up to 1024 points
  - Proximity sensing
- Reliability
  - Increased immunity to power line, RF, and other environmental noise
  - Built-in spread spectrum, automatic tuning, noise filtering, and debouncing algorithms
  - Enable reliable touch solutions with 10-V RMS common-mode noise, 4-kV electrical fast transients, and 15-kV electrostatic discharge, allowing for IEC‑61000-4-6, IEC-61000-4-4, and IEC‑61000-4-2 compliance
  - Reduced RF emissions to simplify electrical designs
  - Support for metal touch and water rejection designs
- Flexibility
  - Up to 16 self-capacitance and 64 mutual-capacitance electrodes
  - Mix and match self- and mutual-capacitive electrodes in the same design
  - Support multi-touch functionality
  - Wide range of capacitance detection, wide electrode range of 0 to 300 pF
- Low power
  - <0.9 µA/button in wake-on-touch mode, where capacitive measurement and touch detection is done by hardware state machine while CPU is asleep
  - Wake-on-touch state machine allows electrode scanning while CPU sleeps
  - Hardware acceleration for environmental compensation, filtering, and threshold detection
- Ease of use
  - CapTIvate Design Center PC GUI lets engineers design and tune capacitive buttons in real time without having to write code
  - CapTIvate software library in ROM provides ample FRAM for customer application
Embedded microcontroller
- 16-bit RISC architecture
- Clock supports frequencies up to 16 MHz
- Wide supply voltage range from 3.6 V down to 1.8 V (minimum supply voltage is restricted by SVS levels, see the SVS specifications)
Optimized ultra-low-power modes
- Active mode: 135 µA/MHz (typical)
- Standby: <5 µA wake-on-touch with four sensors
- Shutdown (LPM4.5): 37 nA without SVS
Low-power ferroelectric RAM (FRAM)
- Up to 64KB of nonvolatile memory
- Built-in error correction code (ECC)
- Configurable write protection
- Unified memory of program, constants, and storage
- 10¹⁵ write cycle endurance
- Radiation resistant and nonmagnetic
Intelligent digital peripherals
- Four 16-bit timers with three capture/compare registers each (Timer_A3)
- One 16-bit timer with seven capture/compare registers (Timer_B7)
- One 16-bit timer associated with CapTIvate technology
- One 16-bit counter-only RTC
- 16-bit cyclic redundancy check (CRC)
Enhanced serial communications with support for pin remap feature
- Two eUSCI_A supports UART, IrDA, and SPI
- Two eUSCI_B supports SPI and I²C
High-performance analog
- One 12-bit analog-to-digital converter (ADC) with up to 12 channels
  - Internal shared reference (1.5, 2.0, or 2.5 V)
  - Sample-and-hold 200 ksps
- One enhanced comparator (eCOMP)
  - Integrated 6-bit DAC as reference voltage
  - Programmable hysteresis
  - Configurable high-power and low-power modes
Clock system (CS)
- On-chip 32-kHz RC oscillator (REFO) with 1 µA support
- On-chip 16-MHz digitally controlled oscillator (DCO) with frequency-locked loop (FLL)
  - ±1% accuracy with on-chip reference at room temperature
- On-chip very low-frequency 10-kHz oscillator (VLO)
- On-chip high-frequency modulation oscillator (MODOSC)
- External 32-kHz crystal oscillator (LFXT)
- Programmable MCLK prescalar of 1 to 128
- SMCLK derived from MCLK with programmable prescalar of 1, 2, 4, or 8
General input/output and pin functionality
- 43 I/Os on LQFP-48 package
- 43 interrupt pins on all GPIOs can wake MCU from low-power modes
Development tools and software
- Development tools
  - MSP CapTIvate™ MCU development kit evaluation: use with CAPTIVATE‑PGMR programmer and capacitive touch MSP430FR2676 MCU board CAPTIVATE‑FR2676
  - Target development board MSP‑TS430PT48A
- Ease-of-use ecosystem
  - CapTIvate Design Center – code generation, customizable GUI, real-time tuning
16KB ROM library includes CapTIvate touch libraries and driver libraries
Family members (also see Device Comparison)
- MSP430FR2676: 64KB of program FRAM, 512B of information FRAM, 8KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2675: 32KB of program FRAM, 512B of information FRAM, 6KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2673: 16KB of program FRAM, 512B of information FRAM, 4KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2672: 8KB of program FRAM, 512B of information FRAM, 2KB of RAM supports up to 16 self-capacitive and 24 mutual-capacitive sensors
Package options
- 48-pin: LQFP (PT)
- 40-pin: VQFN (RHA)
- 32-pin: VQFN (RHB)

CapTIvate™ technology – capacitive touch
- Performance
  - Fast electrode scanning with four simultaneous scans
  - Support for high-resolution sliders with up to 1024 points
  - Proximity sensing
- Reliability
  - Increased immunity to power line, RF, and other environmental noise
  - Built-in spread spectrum, automatic tuning, noise filtering, and debouncing algorithms
  - Enable reliable touch solutions with 10-V RMS common-mode noise, 4-kV electrical fast transients, and 15-kV electrostatic discharge, allowing for IEC‑61000-4-6, IEC-61000-4-4, and IEC‑61000-4-2 compliance
  - Reduced RF emissions to simplify electrical designs
  - Support for metal touch and water rejection designs
- Flexibility
  - Up to 16 self-capacitance and 64 mutual-capacitance electrodes
  - Mix and match self- and mutual-capacitive electrodes in the same design
  - Support multi-touch functionality
  - Wide range of capacitance detection, wide electrode range of 0 to 300 pF
- Low power
  - <0.9 µA/button in wake-on-touch mode, where capacitive measurement and touch detection is done by hardware state machine while CPU is asleep
  - Wake-on-touch state machine allows electrode scanning while CPU sleeps
  - Hardware acceleration for environmental compensation, filtering, and threshold detection
- Ease of use
  - CapTIvate Design Center PC GUI lets engineers design and tune capacitive buttons in real time without having to write code
  - CapTIvate software library in ROM provides ample FRAM for customer application
Embedded microcontroller
- 16-bit RISC architecture
- Clock supports frequencies up to 16 MHz
- Wide supply voltage range from 3.6 V down to 1.8 V (minimum supply voltage is restricted by SVS levels, see the SVS specifications)
Optimized ultra-low-power modes
- Active mode: 135 µA/MHz (typical)
- Standby: <5 µA wake-on-touch with four sensors
- Shutdown (LPM4.5): 37 nA without SVS
Low-power ferroelectric RAM (FRAM)
- Up to 64KB of nonvolatile memory
- Built-in error correction code (ECC)
- Configurable write protection
- Unified memory of program, constants, and storage
- 10¹⁵ write cycle endurance
- Radiation resistant and nonmagnetic
Intelligent digital peripherals
- Four 16-bit timers with three capture/compare registers each (Timer_A3)
- One 16-bit timer with seven capture/compare registers (Timer_B7)
- One 16-bit timer associated with CapTIvate technology
- One 16-bit counter-only RTC
- 16-bit cyclic redundancy check (CRC)
Enhanced serial communications with support for pin remap feature
- Two eUSCI_A supports UART, IrDA, and SPI
- Two eUSCI_B supports SPI and I²C
High-performance analog
- One 12-bit analog-to-digital converter (ADC) with up to 12 channels
  - Internal shared reference (1.5, 2.0, or 2.5 V)
  - Sample-and-hold 200 ksps
- One enhanced comparator (eCOMP)
  - Integrated 6-bit DAC as reference voltage
  - Programmable hysteresis
  - Configurable high-power and low-power modes
Clock system (CS)
- On-chip 32-kHz RC oscillator (REFO) with 1 µA support
- On-chip 16-MHz digitally controlled oscillator (DCO) with frequency-locked loop (FLL)
  - ±1% accuracy with on-chip reference at room temperature
- On-chip very low-frequency 10-kHz oscillator (VLO)
- On-chip high-frequency modulation oscillator (MODOSC)
- External 32-kHz crystal oscillator (LFXT)
- Programmable MCLK prescalar of 1 to 128
- SMCLK derived from MCLK with programmable prescalar of 1, 2, 4, or 8
General input/output and pin functionality
- 43 I/Os on LQFP-48 package
- 43 interrupt pins on all GPIOs can wake MCU from low-power modes
Development tools and software
- Development tools
  - MSP CapTIvate™ MCU development kit evaluation: use with CAPTIVATE‑PGMR programmer and capacitive touch MSP430FR2676 MCU board CAPTIVATE‑FR2676
  - Target development board MSP‑TS430PT48A
- Ease-of-use ecosystem
  - CapTIvate Design Center – code generation, customizable GUI, real-time tuning
16KB ROM library includes CapTIvate touch libraries and driver libraries
Family members (also see Device Comparison)
- MSP430FR2676: 64KB of program FRAM, 512B of information FRAM, 8KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2675: 32KB of program FRAM, 512B of information FRAM, 6KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2673: 16KB of program FRAM, 512B of information FRAM, 4KB of RAM supports up to 16 self-capacitive and 64 mutual-capacitive sensors
- MSP430FR2672: 8KB of program FRAM, 512B of information FRAM, 2KB of RAM supports up to 16 self-capacitive and 24 mutual-capacitive sensors
Package options
- 48-pin: LQFP (PT)
- 40-pin: VQFN (RHA)
- 32-pin: VQFN (RHB)

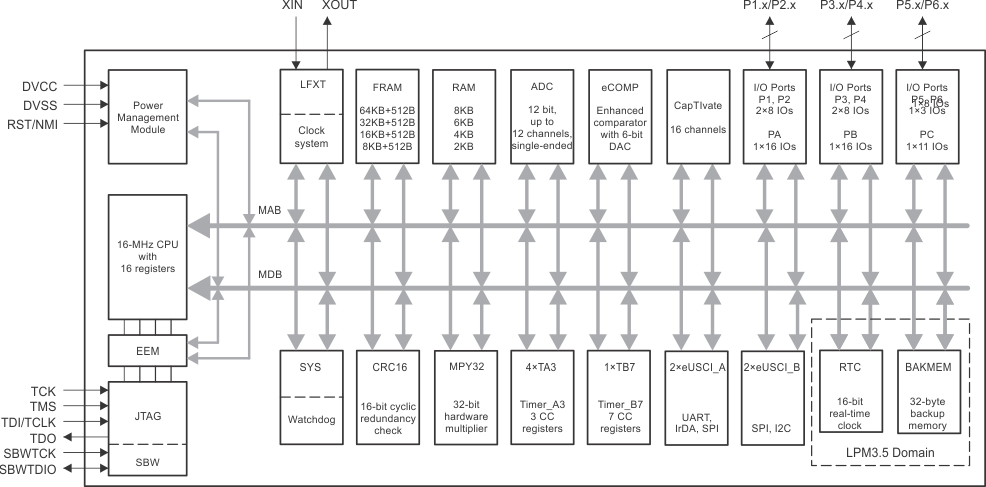

Description

The MSP430FR267x is an ultra-low-power MSP430™ microcontroller for capacitive touch sensing that feature CapTIvate touch technology for buttons, slides, wheel and proximity applications. MSP430 MCUs with CapTIvate technology provide the most integrated and autonomous capacitive-touch solution in the market with high reliability and noise immunity at the lowest power. TIs capacitive touch technology supports concurrent self-capacitance and mutual-capacitance electrodes on the same design for maximum flexibility. MSP430 MCUs with CapTIvate technology operate through thick glass, plastic enclosures, metal, and wood with operation in harsh environments including wet, greasy, and dirty environments.

TI capacitive touch sensing MSP430 MCUs are supported by an extensive hardware and software ecosystem with reference designs and code examples to get your design started quickly. Development kits include the MSP-CAPT-FR2633 CapTIvate Technology Development Kit. TI also provides free software including the CapTIvate Design Center, where engineers can quickly develop applications with an easy-to-use GUI and MSP430Ware™ software, and comprehensive documentation with the CapTIvate Technology Guide. MSP430 MCUs are also supported by extensive online collateral, such as our housekeeping example series, MSP Academy training, and online support through the TI E2E™ support forums.

The TI MSP430 family of low-power microcontrollers consists of devices with different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The MCU features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the MCU to wake up from low-power modes to active mode in less than 10 µs (typical).

For complete module descriptions, see the MSP430FR4xx and MSP430FR2xx Family Users Guide.
