BQ25882
  • BQ25882
  • BQ25882

BQ25882

ACTIVE

I2C 2 cell 2A Boost battery charger for USB input in a WCSP package with Power Path

Texas Instruments BQ25882 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Number of series cells

2

Cell chemistry

Li-Ion/Li-Polymer

Charge current (max) (A)

2

Features

BAT temp thermistor monitoring (JEITA profile), IC thermal regulation, ICO (Input Current Optimization), IINDPM (Input current limit), Input OVP, Integrated ADC, Integrated LDO, Power Path, USB C/PD compatible, USB D+/D-/BC1.2 integrated, USB OTG integrated, VINDPM (Input voltage threshold to maximize adaptor power)

Vin (min) (V)

3.9

Vin (max) (V)

6.2

Absolute max Vin (max) (V)

20

Control topology

Switch-Mode Boost

Battery charge voltage (min) (V)

6.8

Battery charge voltage (max) (V)

9.2

Control interface

I2C

Operating temperature range (°C)

-40 to 85

Package

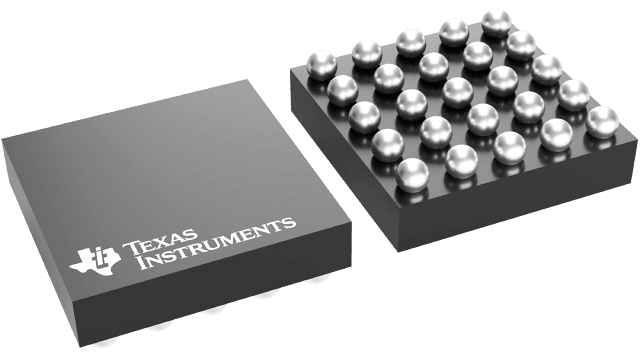

DSBGA (YFF)-25-4.84 mm² 2.2 x 2.2

Features

  • High-efficiency 2-A, 1.5-MHz switch mode boost charger
    • 92.5% Charge efficiency at 7.6-V battery, 1-A charge
    • Optimized for USB input and 2-cell Li-Ion output
    • Selectable low power PFM mode for light load operation with out-of-audio option
  • USB On-the-Go (OTG) with adjustable output from 4.5 V to 5.5 V
    • Buck converter with up-to 2-A output
    • 94.5% Efficiency at 5-V, 1-A output
    • Accurate constant current (CC) limit
    • Output short protection
    • Selectable low power PFM mode for light load operation with out-of-audio option
  • Single Input to support USB input adapters
    • Supports 3.9-V to 6.2-V input voltage range with 20-V absolute maximum input voltage rating
    • Input current limit (500 mA to 3.3 A with 100-mA resolution) to support USB2.0, USB3.0 standard adapters
    • Maximum power tracking by input voltage limit up-to 5.5 V
    • Auto-detect USB SDP, CDP, DCP, and non-standard adapters
  • Input current optimizer (ICO) to maximize input power without overloading adapters
  • Highest battery discharge efficiency with 15-mΩ battery discharge MOSFET
  • Integrated ADC for system monitoring (BUS voltage and current, BAT voltage, charge current, SYS voltage, and NTC and die temperature)
  • Narrow VDC (NVDC) power path management
    • Instant-on works with no battery or deeply discharged battery
    • Ideal diode operation in battery supplement mode
  • Flexible autonomous and I2C mode for optimal system performance
  • High integration includes all MOSFETs, current sensing and loop compensation
  • High accuracy
    • ±0.4% Charge voltage regulation
    • ±7.5% Charge current regulation
    • ±7.5% Input current regulation
  • Safety
    • Battery temperature sensing in charge and OTG buck mode
    • Thermal regulation and thermal shutdown
  • High-efficiency 2-A, 1.5-MHz switch mode boost charger
    • 92.5% Charge efficiency at 7.6-V battery, 1-A charge
    • Optimized for USB input and 2-cell Li-Ion output
    • Selectable low power PFM mode for light load operation with out-of-audio option
  • USB On-the-Go (OTG) with adjustable output from 4.5 V to 5.5 V
    • Buck converter with up-to 2-A output
    • 94.5% Efficiency at 5-V, 1-A output
    • Accurate constant current (CC) limit
    • Output short protection
    • Selectable low power PFM mode for light load operation with out-of-audio option
  • Single Input to support USB input adapters
    • Supports 3.9-V to 6.2-V input voltage range with 20-V absolute maximum input voltage rating
    • Input current limit (500 mA to 3.3 A with 100-mA resolution) to support USB2.0, USB3.0 standard adapters
    • Maximum power tracking by input voltage limit up-to 5.5 V
    • Auto-detect USB SDP, CDP, DCP, and non-standard adapters
  • Input current optimizer (ICO) to maximize input power without overloading adapters
  • Highest battery discharge efficiency with 15-mΩ battery discharge MOSFET
  • Integrated ADC for system monitoring (BUS voltage and current, BAT voltage, charge current, SYS voltage, and NTC and die temperature)
  • Narrow VDC (NVDC) power path management
    • Instant-on works with no battery or deeply discharged battery
    • Ideal diode operation in battery supplement mode
  • Flexible autonomous and I2C mode for optimal system performance
  • High integration includes all MOSFETs, current sensing and loop compensation
  • High accuracy
    • ±0.4% Charge voltage regulation
    • ±7.5% Charge current regulation
    • ±7.5% Input current regulation
  • Safety
    • Battery temperature sensing in charge and OTG buck mode
    • Thermal regulation and thermal shutdown

Description

The BQ25882 is a highly-integrated 2-A switch-mode battery charge management and system power path management device for dual-cell Li-Ion and Li-polymer batteries. The I2C Serial interface with charging and system settings makes the device a truly flexible solution.

The BQ25882 is a highly-integrated 2-A switch-mode battery charge management and system power path management device for dual-cell Li-Ion and Li-polymer batteries. The I2C Serial interface with charging and system settings makes the device a truly flexible solution.
