0
ACTIVE
Device type |
Voltage sensing |
Peak-to-peak input voltage range (V) |
1V |
Interface type |
Serial CMOS |
Sample rate (max) (Msps) |
21 |
Rating |
Automotive |
CMTI (min) (kV/µs) |
80 |
Number of input channels |
1 |
Architecture |
Delta-Sigma |
SNR (dB) |
87 |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
33.7 |
SFDR (dB) |
92 |
Isolation rating |
Reinforced |
Withstand isolation voltage (VISO) (Vrms) |
5700 |
Working isolation voltage (VIOWM) (Vrms) |
1500 |
Transient isolation voltage (VIOTM) (VPK) |
8 |
Creepage (min) (mm) |
8.5 |
Clearance (min) (mm) |
8.5 |
SOIC (DWV)-8-67.275 mm² 5.85 x 11.5
The AMC1336-Q1 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced isolation of up to 8000 VPEAK according to the DIN VDE V 0884-11 and UL1577 standards. Used in conjunction with isolated power supplies, this isolated modulator separates parts of the system that operate on different common-mode voltage levels and protects lower-voltage parts from damage.

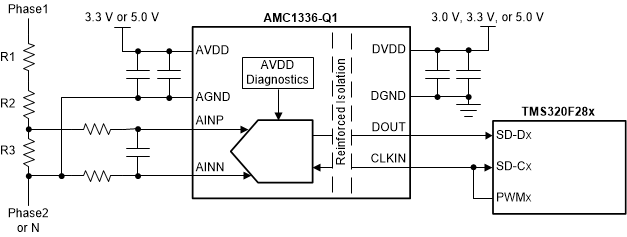

The unique wide, bipolar. ±1-V input voltage range of theAMC1336-Q1 and its high input resistance support direct connection of the device to resistive dividers in high-voltage applications. When used with a digital filter (for instance, as integrated in the TMS320F28004x, TMS320F2807x, or TMS320F2837x microcontroller families) to decimate the output bitstream, the device can achieve 16 bits of resolution with a dynamic range of 87 dB at a data rate of 82 kSPS.
On the high-side, the AMC1336-Q1 is supplied by a
3.3-V or 5-V power supply. The isolated digital interface operates from a 3.0-V, 3.3-V or 5-V power supply.
The AMC1336-Q1 performance is specified over the extended industrial temperature range of –40°C to +125°C.
