ACTIVE
Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
2048 |
Number of input channels |
2 |
Interface type |
Enhanced SPI, SPI |
Architecture |
SAR |
Input type |
Pseudo-Differential |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Operating temperature range (°C) |
-40 to 125 |
Analog supply voltage (min) (V) |
4 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
90 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
5.5 |

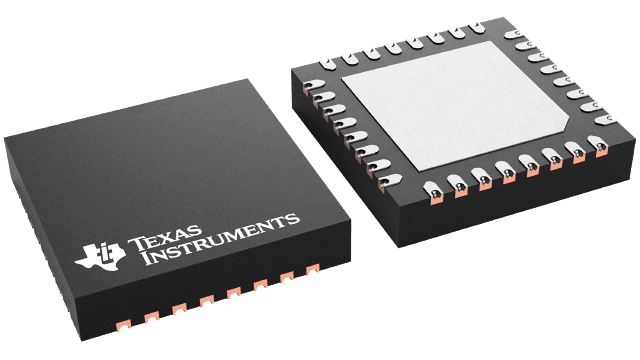

VQFN (RHB)-32-25 mm² 5 x 5
The is , dual-channel, simultaneous-sampling, analog-to-digital converter (ADC) with an integrated reference buffer. The device can operate on a single supply and supports unipolar, analog input signals with excellent DC and AC specifications.
The device supports an interface, making the device easy to pair with a diversity of microcontrollers, digital signal processors (DSPs), and field-programmable gate arrays (FPGAs).
The device comes in a space-saving, 5-mm × 5-mm, VQFN package. The is specified for the extended temperature range of –40°C to +125°C.
