ACTIVE
Resolution (Bits) |
18 |
Sample rate (max) (ksps) |
8000 |
Number of input channels |
2 |
Interface type |
Enhanced SPI, Serial CMOS |
Architecture |
SAR |
Input type |
Differential, Single-ended |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
12 |
Input voltage range (min) (V) |
-12 |
Features |
Over-Voltage Protection, PGA |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
220 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
92.3 |
Digital supply (min) (V) |
1.75 |
Digital supply (max) (V) |
1.85 |

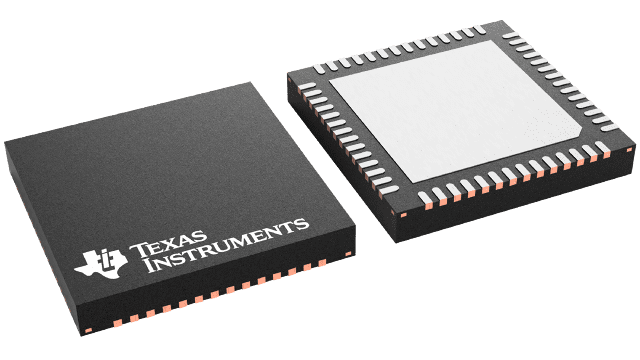

VQFN (RSH)-56-49 mm² 7 x 7
The ADS9212 is a 2-channel data acquisition (DAQ) system based on a dual, simultaneous-sampling, 18-bit successive approximation register (SAR) analog-to-digital converter (ADC). The ADS9212 features a complete analog front-end for each channel with an input clamp, 1MΩ input impedance, independently programmable gain amplifier (PGA), programmable low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADCs. A high-speed digital interface supporting 1.2V to 1.8V operation enables the ADS9212 to be used with high-speed interfaces.
The ADS9212 can be configured to accept ±12V, ±10V, ±7V, ±5V, ±3.5V, and ±2.5V bipolar inputs. The high input impedance allows direct connection with sensors and transformers, thus eliminating the need for external driver circuits. The high performance and accuracy, along with zero-latency conversions offered by this device make the ADS9212 designed for multiple industrial applications.
