ACTIVE
Resolution (Bits) |
18 |
Sample rate (max) (ksps) |
1000 |
Number of input channels |
1 |
Interface type |
Byte-Wide, Parallel |
Architecture |
SAR |
Input type |
Pseudo-Differential, Single-ended |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
4.1 |
Input voltage range (min) (V) |
0 |
Features |
Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
220 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
94 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.25 |

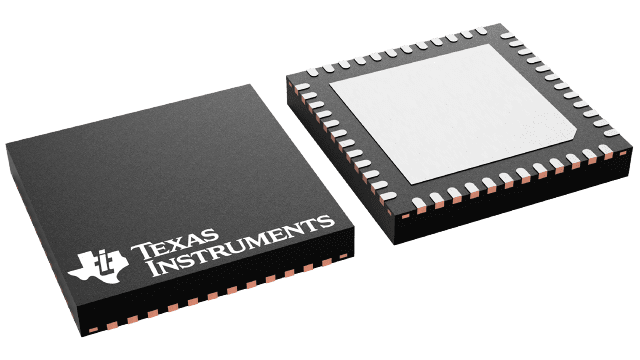

VQFN (RGZ)-48-49 mm² 7 x 7

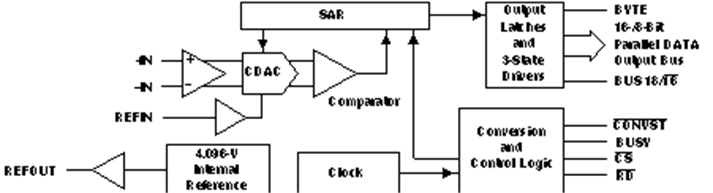

The ADS8481 is an 18-bit, 1-MSPS A/D converter with an internal 4.096-V reference and a pseudo-differential unipolar single-ended input. The device includes a 18-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8481 offers a full 18-bit interface, a 16-bit option where data is read using two read cycles, or an 8-bit bus option using three read cycles.
The ADS8481 is available in a 7x7 QFN package and is characterized over the industrial -40°C to 85°C temperature range.
