Configuration |
4:1 |
Number of channels |
2 |
Power supply voltage - single (V) |
5, 12, 16, 20, 24 |
Power supply voltage - dual (V) |
+/-10, +/-12, +/-5 |
Protocols |
Analog |
Ron (typ) (Ω) |
60 |
CON (typ) (pF) |
7 |
ON-state leakage current (max) (µA) |
1 |
Supply current (typ) (µA) |
20 |
Bandwidth (MHz) |
500 |
Operating temperature range (°C) |
-55 to 125 |
Features |
1.8-V compatible control inputs |
Input/output continuous current (max) (A) |
0.01 |
Rating |
Automotive |
Drain supply voltage (max) (V) |
24 |
Supply voltage (max) (V) |
24 |
SOT-23-THN (DYY)-16-8.4 mm² 4.2 x 2

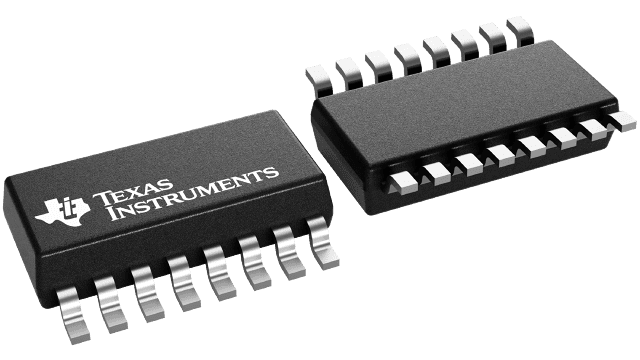

The TMUX405x-Q1 devices are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX4051-Q1 is an 8:1, 1-channel multiplexer and the TMUX4052-Q1 is a 4:1, 2-channel multiplexer. The devices work with a single supply (5 V to 24 V), dual supplies (up to ±12 V), or asymmetric supplies (such as V DD = 12 V, V SS = –5 V). The wide supply voltage range allows the TMUX405x-Q1 devices to be used in a broad array of applications from battery testers to appliances.
The TMUX405x-Q1 devices support bidirectional analog signals on the source (Sx) and drain (Dx) pins ranging from V SS to V DD. All logic inputs have 1.8 V logic compatible thresholds, which is compatible for both TTL and CMOS logic when operating with a valid supply voltage.
