ADS8328

ACTIVE

2.7V-to-5.5V 16-Bit 500kSPS Serial ADC With 2-to-1 Multiplexer

Texas Instruments ADS8328 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

16

Sample rate (max) (ksps)

500

Number of input channels

2

Interface type

SPI

Architecture

SAR

Input type

Single-ended

Multichannel configuration

Multiplexed

Rating

Catalog

Reference mode

External

Input voltage range (max) (V)

5.5

Input voltage range (min) (V)

0

Features

Daisy-Chainable, Oscillator

Operating temperature range (°C)

-40 to 85

Power consumption (typ) (mW)

10.6

Analog supply voltage (min) (V)

2.7

Analog supply voltage (max) (V)

5.5

SNR (dB)

91

Digital supply (min) (V)

1.65

Digital supply (max) (V)

5.5

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • 2.7-V to 5.5-V Analog Supply, Low Power:
    • 10.6 mW (500 kHz, +VA = 2.7 V,
      +VBD = 1.8 V)
  • 500-kHz Sampling Rate
  • Excellent DC Performance
    • ±1.5 LSB Typ, ±2 LSB Max INL
    • ±0.6 LSB Typ, ±1 LSB Max DNL
    • 16-Bit NMC Over Temperature
    • ±0.5 mV Max Offset Error at 2.7 V
    • ±1 mV Max Offset Error at 5 V
  • Excellent AC Performance at fI = 10 kHz with 91 dB SNR, 100 dB SFDR, –96 dB THD
  • Built-In Conversion Clock (CCLK)
  • 1.65 V to 1.5×(+VA) I/O Supply
    • SPI/DSP Compatible Serial
    • SCLK up to 50 MHz
  • Comprehensive Power-Down Modes:
    • Deep Power-Down
    • Nap Power-Down
    • Auto Nap Power-Down
  • Unipolar Input Range: 0 V to VREF
  • Software Reset
  • Global CONVST (Independent of CS)
  • Programmable Status/Polarity EOC/INT

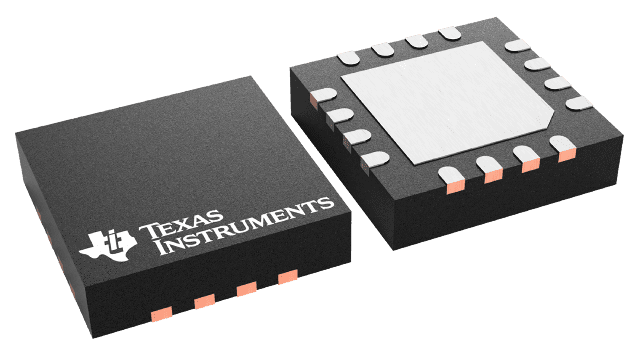

  • 16-Pin 4×4 QFN or 16-Pin TSSOP Packages
  • Multi-Chip Daisy Chain Mode
  • Programmable TAG Bit Output
  • Auto/Manual Channel Select Mode
  • APPLICATIONS
    • Communications
    • Transducer Interface
    • Medical Instruments
    • Magnetometers
    • Industrial Process Control
    • Data Acquisition Systems
    • Automatic Test Equipment
    • 2.7-V to 5.5-V Analog Supply, Low Power:
      • 10.6 mW (500 kHz, +VA = 2.7 V,
        +VBD = 1.8 V)
    • 500-kHz Sampling Rate
    • Excellent DC Performance
      • ±1.5 LSB Typ, ±2 LSB Max INL
      • ±0.6 LSB Typ, ±1 LSB Max DNL
      • 16-Bit NMC Over Temperature
      • ±0.5 mV Max Offset Error at 2.7 V
      • ±1 mV Max Offset Error at 5 V
    • Excellent AC Performance at fI = 10 kHz with 91 dB SNR, 100 dB SFDR, –96 dB THD
    • Built-In Conversion Clock (CCLK)
    • 1.65 V to 1.5×(+VA) I/O Supply
      • SPI/DSP Compatible Serial
      • SCLK up to 50 MHz
    • Comprehensive Power-Down Modes:
      • Deep Power-Down
      • Nap Power-Down
      • Auto Nap Power-Down
    • Unipolar Input Range: 0 V to VREF
    • Software Reset
    • Global CONVST (Independent of CS)
    • Programmable Status/Polarity EOC/INT
    • 16-Pin 4×4 QFN or 16-Pin TSSOP Packages
    • Multi-Chip Daisy Chain Mode
    • Programmable TAG Bit Output
    • Auto/Manual Channel Select Mode
  • APPLICATIONS
    • Communications
    • Transducer Interface
    • Medical Instruments
    • Magnetometers
    • Industrial Process Control
    • Data Acquisition Systems
    • Automatic Test Equipment

    Description

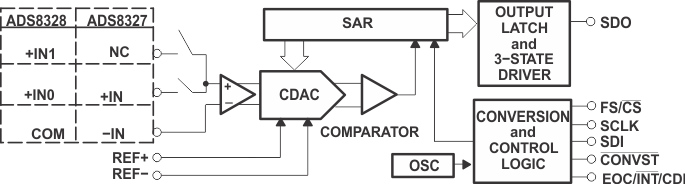

    The ADS8327 is a low power, 16-bit, 500-kSPS analog-to-digital converter with a unipolar input. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold.

    The ADS8328 is based on the same core and includes a 2-to-1 input MUX with programmable option of TAG bit output. Both the ADS8327 and ADS8328 offer a high-speed, wide voltage serial interface and are capable of chain mode operation when multiple converters are used.

    These converters are available in a 16-lead TSSOP or 4×4 QFN packages and are fully specified for operation over the industrial –40°C to +85°C temperature range.

    The ADS8327 is a low power, 16-bit, 500-kSPS analog-to-digital converter with a unipolar input. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold.

    The ADS8328 is based on the same core and includes a 2-to-1 input MUX with programmable option of TAG bit output. Both the ADS8327 and ADS8328 offer a high-speed, wide voltage serial interface and are capable of chain mode operation when multiple converters are used.

    These converters are available in a 16-lead TSSOP or 4×4 QFN packages and are fully specified for operation over the industrial –40°C to +85°C temperature range.
