ADS5484
  • ADS5484

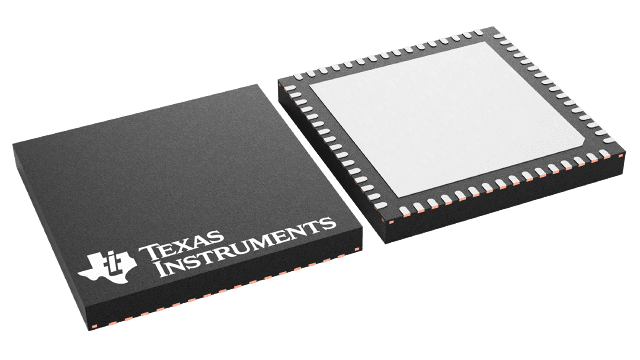

ADS5484

ACTIVE

16-Bit, 170-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS5484 Product Info

1 April 2026 5

Parameters

Sample rate (max) (Msps)

170

Resolution (Bits)

16

Number of input channels

1

Interface type

Parallel LVDS

Analog input BW (MHz)

730

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

3

Power consumption (typ) (mW)

2160

Architecture

Pipeline

SNR (dB)

76.8

ENOB (Bits)

12.3

SFDR (dB)

95

Operating temperature range (°C)

-40 to 85

Input buffer

Yes

Package

VQFN (RGC)-64-81 mm² 9 x 9

Features

  • 170/200-MSPS Sample Rates
  • 16-Bit Resolution, 78 dBFS Noise Floor
  • SFDR = 95 dBc
  • On-Chip High Impedance Analog Buffer
  • Efficient DDR LVDS-Compatible Outputs
  • Power-Down Mode: 70 mW
  • Pin-for-Pin with ADS5483/5482/5481, 135/105/80-MSPS ADCs
  • QFN-64 PowerPAD Package (9 mm × 9 mm footprint)
  • Industrial Temperature Range: –40°C to 85°C
  • APPLICATIONS
    • Wireless Infrastructure
    • Test and Measurement Instrumentation
    • Software-Defined Radio
    • Data Acquisition
    • Power Amplifier Linearization
    • Radar
    • Medical Imaging

All trademarks are the property of their respective owners

  • 170/200-MSPS Sample Rates
  • 16-Bit Resolution, 78 dBFS Noise Floor
  • SFDR = 95 dBc
  • On-Chip High Impedance Analog Buffer
  • Efficient DDR LVDS-Compatible Outputs
  • Power-Down Mode: 70 mW
  • Pin-for-Pin with ADS5483/5482/5481, 135/105/80-MSPS ADCs
  • QFN-64 PowerPAD Package (9 mm × 9 mm footprint)
  • Industrial Temperature Range: –40°C to 85°C
  • APPLICATIONS
    • Wireless Infrastructure
    • Test and Measurement Instrumentation
    • Software-Defined Radio
    • Data Acquisition
    • Power Amplifier Linearization
    • Radar
    • Medical Imaging

All trademarks are the property of their respective owners

Description

The ADS5484/ADS5485 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T & H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is provided to simplify the system design. Internal dither is available to improve SFDR. These devices are drop-in compatible to the ADS5483/5482/5481, creating a pin-compatible family from 80 – 200 MSPS. Designed for highest total ENOB, the ADS548x family has outstanding low noise performance and spurious-free dynamic range.

The ADS548x family is available in a QFN-64 PowerPAD package. The devices are built on Texas Instruments complementary bipolar process (BiCom3) and are specified over the full industrial temperature range (–40°C to 85°C).
