ACTIVE
Resolution (Bits) |
18 |
Sample rate (max) (ksps) |
0.08 |
Number of input channels |
1 |
Interface type |
SPI |
Architecture |
Delta-Sigma |
Input type |
Differential, Single-ended |
Rating |
Catalog |
Reference mode |
External |
Input voltage range (max) (V) |
0.041 |
Input voltage range (min) (V) |
0 |
Features |
50/60 Hz Rejection, Oscillator, PGA |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
2.9 |
Analog supply voltage (min) (V) |
2.7 |
Analog supply voltage (max) (V) |
5.3 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.3 |
TSSOP (PW)-16-32 mm² 5 x 6.4
All trademarks are the property of their respective owners.

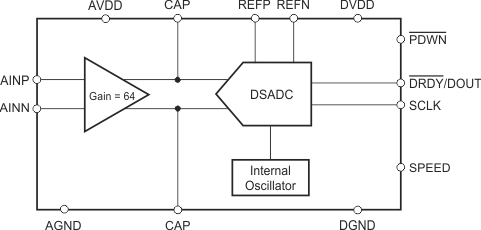

The ADS1130 is a precision, 18-bit analog-to-digital converter (ADC). With an onboard low-noise gain amplifier, onboard oscillator, and precision 18-bit delta-sigma ADC, the ADS1130 provides a complete front-end solution for bridge sensor applications including weigh scales and strain gauges.
The low-noise amplifier has a gain of 64, supporting a full-scale differential input of ±39mV. The delta-sigma ADC has 18-bit effective resolution and is comprised of a third-order modulator and fourth-order digital filter. Two data rates are supported: 10SPS (with both 50Hz and 60Hz rejection) and 80SPS. The ADS1130 can be put into a low-power standby mode or shut off completely in power-down mode.
All of the features of the ADS1130 are controlled by dedicated pins; there are no digital registers to program. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers.
The ADS1130 is available in a TSSOP-16 package and is specified for operation from -40°C to +85°C.
