0
ACTIVE
Resolution (Bits) |
8 |
Sample rate (max) (ksps) |
250 |
Number of input channels |
2 |
Interface type |
Microwire (Serial I/O), SPI |
Architecture |
SAR |
Input type |
Differential, Single-ended |
Multichannel configuration |
Multiplexed |
Rating |
Catalog |
Reference mode |
Supply |
Input voltage range (max) (V) |
6 |
Input voltage range (min) (V) |
0 |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
12 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
6 |
SNR (dB) |
48.5 |
Digital supply (min) (V) |
4.5 |
Digital supply (max) (V) |
6 |
SOIC (D)-8-29.4 mm² 4.9 x 6
All trademarks are the property of their respective owners.

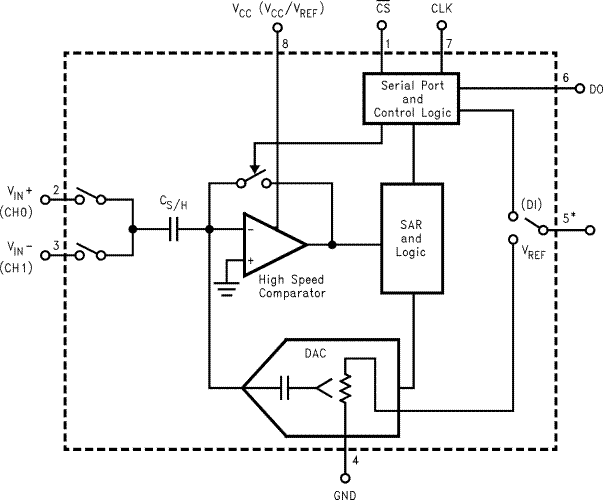

The ADC08831/ADC08832 are 8-bit successive approximation Analog to Digital converters with 3-wire serial interfaces and a configurable input multiplexer for 2 channels. The serial I/O will interface to COPSfamily of micro-controllers, PLD's, microprocessors, DSP's, or shift registers. The serial I/O is configured to comply with the MICROWIRE serial data exchange standard.
To minimize total power consumption, the ADC08831/ADC08832 automatically go into low power mode whenever they are not performing conversions.
A track/hold function allows the analog voltage at the positive input to vary during the actual A/D conversion.
The analog inputs can be configured to operate in various combinations of single-ended, differential, or pseudo-differential modes. The voltage reference input can be adjusted to allow encoding of small analog voltage spans to the full 8-bits of resolution.
