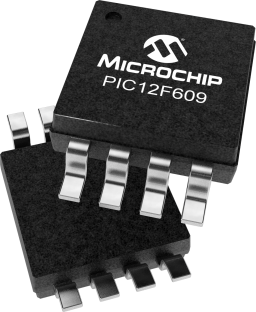

PIC12F609

In Production

Microchip Technology PIC12F609 Product Info

16 April 2026 0

Parameters

Program Memory Size (KB)

1.75

RAM

64

Data EEPROM (bytes)

0

Pin Count

8

Operation Voltage Max.(V)

15

Operation Voltage Min.(V)

2

ADC Resolution Max

0

ADC Channels

0

Zero Cross Detect

No

Number of Comparators

1

SPI

0

I2C

0

Stand alone PWM

0

Low Power

No

Numerically Controlled Oscillator (NCO)

0

Data Signal Modulator (DSM)

0

Features

  • Flash Program Memory
  • Internal 4/8MHz oscillator
  • Comparator with hysterisis (user configurable)
  • Mid-Range core with 35 Instruction, 8 Stack Levels
  • 25mA Source/Sink current I/O
  • One 8-bit Timer (TMR0)
  • One 16-bit Timer (TMR1)
  • Watchdog Timer (WDT)
  • Enhanced Power-On/Off-Reset
  • Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • Wide Operating Voltage (2.0V – 5.5V)
  • High Voltage PIC12HV609 variant (2.0V – User Defined) with internal shunt regulator
