• Wide input voltage range: 6V to 120V DC
• Ultra-low quiescent current: 6µA
• 50mA guaranteed output current
• Adjustable output from 1.27V to 5.5V
• Withstands up to +120V DC at the input
• Stable with ceramic output capacitors
• Ultra-high PSRR (80dB at 10kHz)
• Ultra-high line rejection (load dump)
• ±3% initial accuracy
• Thermal shutdown and current limit protection
• Thermally efficient, 8-pin MSOP and 8-pin ePad MSOP packages

The MIC5282 high performance linear regulator offers a very wide input operating voltage range, up to 120V DC, and supplies an output current of up to 50mA.

Ideal for high input voltage applications such as industrial and telecom, the MIC5282 offers ±3% initial accuracy, extremely high power supply rejection ratio (80dB at 10kHz) and ultra-low quiescent current of 6µA. The MIC5282 is optimized for high-voltage line transients, making it ideal for harsh environment applications.

The MIC5282 is offered in both fixed output voltage (3.3V/5.0V) and adjustable output voltage (1.27V to 5.5V) options.

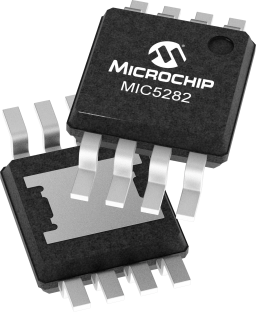

The MIC5282 operates over a -40°C to +125°C temperature range and is available in lead-free, RoHS-compliant, 8-pin ePad MSOP and 8-pin MSOP packages.
