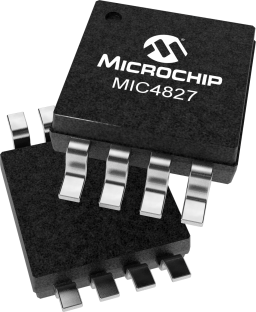

MIC4827
  • MIC4827

MIC4827

In Production

MIC4827 is a high output voltage, DC to AC converter, designed for driving electroluminescent (EL) lamps. The device operates from an input voltage range of 1.8V to 5.5V, making it suitable for 1-cell Li-Ion and 2- or 3-cell alkaline/NiCad/NiMH battery applications. The MIC4827 converts a low voltage DC input to a 180VPP AC output signal that drives the EL lamp. The MIC4827 is comprised of two stages: a boost stage, and an H-bridge, lamp driver stage. The boost stage steps the input voltage up to +90V. The H-bridge stage then alternately switches the +90V output to each terminal of the EL lamp, thus creating a 180VPP AC signal to drive the EL lamp and generate light. The MIC4827 features separate oscillators for the boost and H-bridge stages. External resistors independently set the oper...

Microchip Technology MIC4827 Product Info

16 April 2026 10

Parameters

Type

Single Lamp Driver

Input Voltage Low (V)

1.8

Input Voltage High (V)

5.5

Nominal Output Voltage (V)

±90

Max Switch Resistance (Ω)

7.0

Output Regulation

Yes

Max Lamp Size per Device (in2)

3.0

Package

8/MSOP

Product Type

Electroluminescent Drivers

Operating Iq (µA)

0

Frequency(EL, Typical)

285Hz - 435Hz

Oja (C/W)

206

VOUT

180

Features

    • 1.8V to 5.5V DC input voltage
    • 180VPP regulated AC output waveform
    • Independently adjustable EL lamp frequency
    • Independently adjustable boost converter frequency
    • 0.1µA shutdown current

Description

MIC4827 is a high output voltage, DC to AC converter, designed for driving electroluminescent (EL) lamps. The device operates from an input voltage range of 1.8V to 5.5V, making it suitable for 1-cell Li-Ion and 2- or 3-cell alkaline/NiCad/NiMH battery applications. The MIC4827 converts a low voltage DC input to a 180VPP AC output signal that drives the EL lamp. The MIC4827 is comprised of two stages: a boost stage, and an H-bridge, lamp driver stage. The boost stage steps the input voltage up to +90V. The H-bridge stage then alternately switches the +90V output to each terminal of the EL lamp, thus creating a 180VPP AC signal to drive the EL lamp and generate light. The MIC4827 features separate oscillators for the boost and H-bridge stages. External resistors independently set the operating frequency of each stage. This flexibility allows the EL lamp circuit to be optimized for maximum efficiency and brightness. The MIC4827 uses a single inductor and a minimum number of external components, making it ideal for portable, space-sensitive applications. The MIC4827 is available in an 8-pin MSOP package with an ambient temperature range of -40°C to +85°C.
