In Production
VIN Min (V) V (volt) |
2.25 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.5, 1.8, 2.0, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.3, 4.6, 4.75 |
IOUT #1 Max mA (milliampere) |
150 |
Rated IOUT Max mA (milliampere) |
150 |
Quiescent Current µA (microampere) |
90 |
Voltage Drop Typ (mV) |
60 |
Accuracy (+/-) % |
2 |
Adjustable VOUT |
Yes |
Reverse Battery |
No |
Bypass Pin |
Yes |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

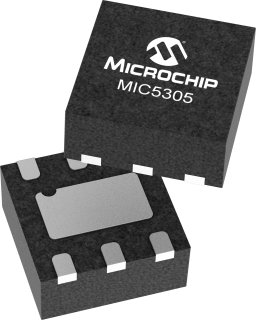

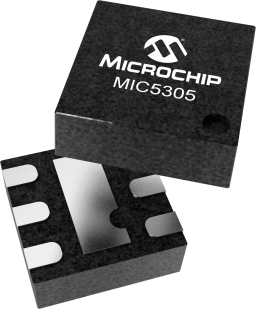

The MIC5305 is a high-performance, 150mA LDO regulator, offering extremely high PSRR and very low noise while consuming low ground current.
Ideal for battery-operated applications, the MIC5305 features 1% accuracy, extremely low dropout voltage (60mV at 150mA), and low ground current at light load (typically 90µA). Equipped with a logic-compatible enable pin, the MIC5305 can be put into a zero-off-mode current state, drawing no current when disabled.
The MIC5305 is a µCap design operating with very small ceramic output capacitors for stability, thereby reducing required board space and component cost.
