• No compensation required
• Up to 14A output current
• >93% peak efficiency
• Output voltage: 0.8V to 85% of VIN with ±1% accuracy
• Adjustable switching frequency from 200kHz to 600kHz
• Enable input and open-drain power good output
• Hyper Speed Control™ (MIC45212-2) architecture enables fast transient response
• HyperLight Load® (MIC45212-1) improves light load efficiency
• Supports safe startup into pre-biased output
• CISPR22, Class B complaint
• –40°C to +125°C junction temperature range
• Thermal shutdown protection
• Short-circuit protection with hiccup mode
• Adjustable current limit

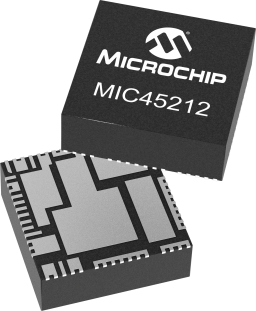

• Available in 64-pin 12mm × 12mm x 4mm QFN package

MIC45212 is a synchronous step-down regulator module, featuring a unique adaptive ON-time control architecture. The module incorporates a DC-to-DC controller, power MOSFETs, bootstrap diode, bootstrap capacitor, and an inductor in a single package; simplifying the design and layout process for the end user. This highly-integrated solution expedites system design and improves product time-to-market. The internal MOSFETs and inductor are optimized to achieve high efficiency at a low output voltage. The fully-optimized design can deliver up to 14A current under a wide input voltage range of 4.5V to 26V, without requiring additional cooling. The MIC45212-1 uses HyperLight Load® (HLL) while the MIC45212-2 uses Hyper Speed Control™ architecture, which enables ultra-fast load transient response, allowing for a reduction of output capacitance. The MIC45212 offers 1% output accuracy that can be adjusted from 0.8V to 85% of VIN with two external resistors. Additional features include thermal shutdown protection, input undervoltage lockout, adjustable current limit, and short circuit protection. The MIC45212 allows for safe start-up into a pre-biased output.
