• 3.0A minimum guaranteed output current
• 600mV maximum dropout voltage over temperature
• Ideal for 3.0V to 2.5V conversion
• Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion
• Stable with ceramic or tantalum capacitor
• Wide input voltage range: VIN: 2.25V to 6.0V
• Excellent line and load regulation specifications
• Logic-controlled shutdown
• Thermal shutdown and current limit protection
• Reverse leakage protection
• -40°C to +125°C junction temperature
• Power D-Pak package (TO-252)

The MIC35302 is a 3A low-dropout linear voltage regulator that provides a low voltage, high current output with a minimum of external components. It offers high precision, ultra-low dropout (600mV over temperature), and low ground current.

The MIC35302 operates from an input of 2.25V to 6.0V. It is designed to drive digital circuits requiring low voltage at high currents (i.e., PLDs, DSPs, micro-controllers, etc.), providing an adjustable output voltage from 1.24V to 5.4V.

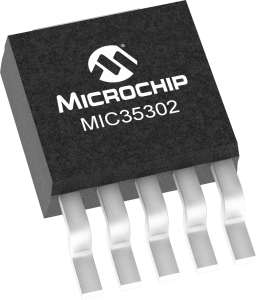

Features of the MIC35302 LDO include current limiting and thermal protection, and reverse current and reverse battery protection. Also a logic (active-HIGH) enable pin is included. The MIC35302 is available in a 5-pin power D-Pak package (TO-252) with an operating temperature range of -40°C to +125°C.
