In Production
VIN Min (V) V (volt) |
2.3 |
VIN Max V (volt) |
6 |
VOUT V (volt) |
0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0 |
IOUT #1 Max mA (milliampere) |
1000 |
Rated IOUT Max mA (milliampere) |
1000 |
Quiescent Current µA (microampere) |
120 |
Voltage Drop Typ (mV) |
250 |
Accuracy (+/-) % |
2 |
Adjustable VOUT |
Yes |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
Yes |
Thermal Shutdown |
Yes |

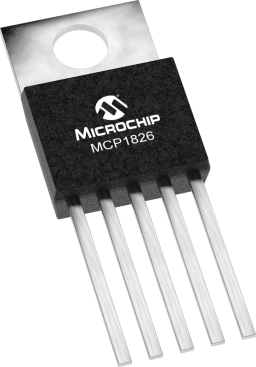

The MCP1826 is a 1A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO) with shutdown and power good functions (fixed output version only). It is part of the family of LDOs that includes 500 mA MCP1825 and 1.5A MCP1827. The MCP1826 comes in thermally enhanced DDPAK-5 and TO-220-5 packages as well as space-efficient SOT223-5 package.
