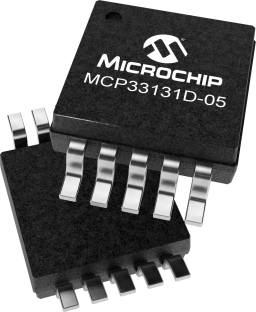

MCP33131D-05
  • MCP33131D-05
  • MCP33131D-05

MCP33131D-05

In Production

The MCP33131D-05 16-bit Analog-to-Digital Converter (ADC) features a full differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33131D-05 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 16-bit ADC capability to be added to any PIC® microcontroller. The MCP33131D-05 features 500k samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical active), and is available in 10-pin MSOP and 10-pin TDFN packages. Applications for the MCP33131D-05 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle ba...

Microchip Technology MCP33131D-05 Product Info

16 April 2026 0

Parameters

Resolution

16

Sample Rate kSPS Max

500

Input Channels Differential

1

SNRtyp

91.6

SFDR typ

103.7

ENOB

14.9

INL Typ LSB

2

Features

  • 16-bit resolution
  • Differential input
  • SPI interface
  • ±0.8 LSB Typical DNL
  • ±2 LSB Typical INL
  • 500 ksps sample rate
  • -40 to +125°C temperature range
  • Recommended for Automotive Designs (Q100)

Description

The MCP33131D-05 16-bit Analog-to-Digital Converter (ADC) features a full differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33131D-05 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 16-bit ADC capability to be added to any PIC® microcontroller. The MCP33131D-05 features 500k samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical active), and is available in 10-pin MSOP and 10-pin TDFN packages. Applications for the MCP33131D-05 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications.
