In Production
VIN Min (V) V (volt) |
2.1 |
VIN Max V (volt) |
6 |
VOUT V (volt) |
0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0 |
IOUT #1 Max mA (milliampere) |
500 |
Rated IOUT Max mA (milliampere) |
500 |
Quiescent Current µA (microampere) |
120 |
Voltage Drop Typ (mV) |
210 |
Accuracy (+/-) % |
2.5 |
Adjustable VOUT |
Yes |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
Yes |
Thermal Shutdown |
Yes |

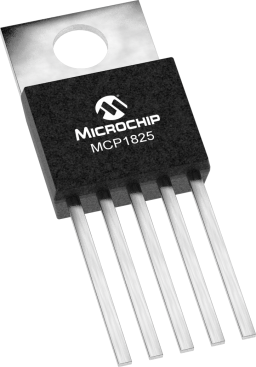

The MCP1825/MCP1825S is a 500 mA Low Dropout (LDO) linear regulator that provides high current and low output voltages. The MCP1825 comes in a fixed or adjustable output voltage version, with an output voltage range of 0.8V to 5.0V. The 500 mA output current capability, combined with the low output voltagecapability, make the MCP1825 a good choice for new sub-1.8V output voltage LDO applications that have high current demands. The MCP1825S is a 3-pin fixed voltage version. The MCP1825/MCP1825S is stable using ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1 μF of output capacitance is needed to stabilize the LDO.
