Supply Range of 1.71V to 3.63V

Wide Frequency Range:
• 3.5 KHz to 100 MHz

Ultra–Low Power Consumption: 3 mA/1.5µA (Active/Standby)

Ultra-Small Footprints:
• 1.6 mm x 1.2 mm
• 2.0 mm x 1.6 mm
• 2.5 mm x 2.0 mm
• 3.2 mm x 2.5 mm
• 5.0 mm x 3.2 mm
• 7.0 mm x 5.0 mm

Frequency Select Input Supports 2 Predefined Frequencies

High Stability: ±20, ±25, ±50 ppm

Wide Temperature Range:
• Automotive: –40°C to 125°C
• Ext. Industrial : : –40°C to 105°C
• Industrial: –40°C to 85°C
• Ext. Commercial: –20° to 70°C

Excellent Shock & Vibration Immunity: Qualified to MIL-STD-883

High Reliability: 20x Better MTTF Than Quartz Oscillators

Lead Free & RoHS Compliant

Short Sample Lead Time: <2 weeks

The DSC61XXB family of MEMS oscillators combine the industry leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC61XXB MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices such as wearable and Internet of Things (IoT) devices in which small size, low power consumption, and long-term reliability are paramount.

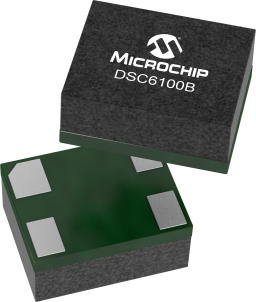

The low power/ low jitter DSC6100B family is available in ultra-small 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm, 2.5 mm x 2.0 mm, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm and 7.0 mm x 5.0 mm packages. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

DSC61XXB provides improved jitter performance and wider temperature range over DSC6100 family and is the recommended ultra-low power MEMS oscillator for all new designs.

For automotive grade product, please refer to DSA6100 family
